Component Location

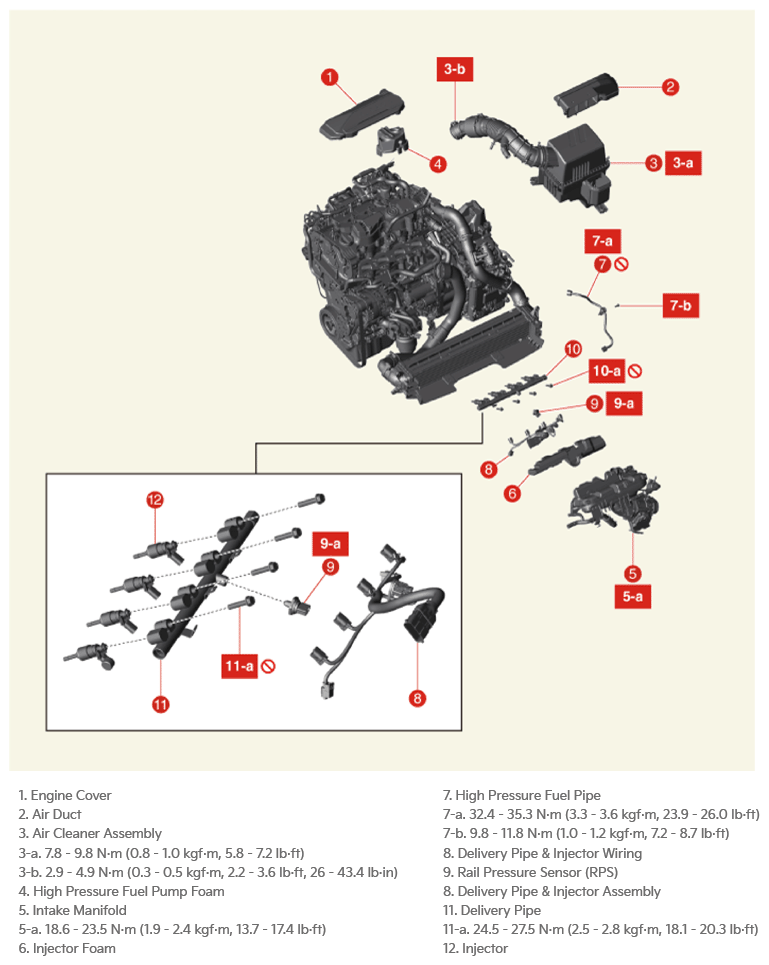

Fig 1: Injector Components Location With Torque Specifications
G16423821Courtesy of KIA MOTORS AMERICA, INC.

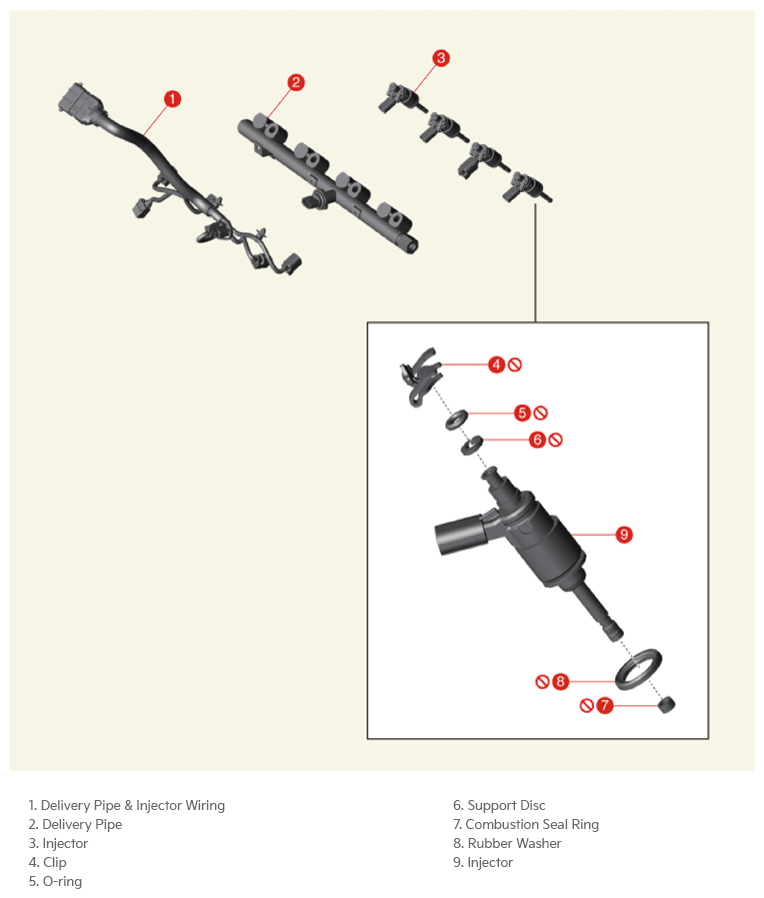

G16423822Courtesy of KIA MOTORS AMERICA, INC.
