Component Inspection

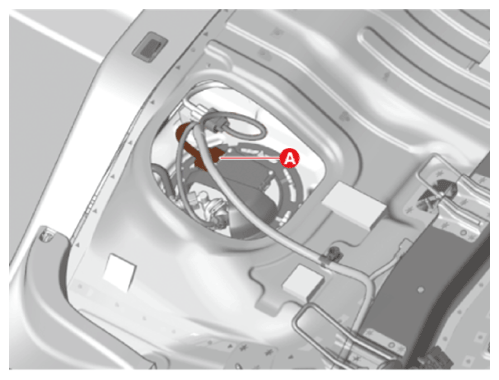

Disconnect the Fuel Pump Control Module (FPCM) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

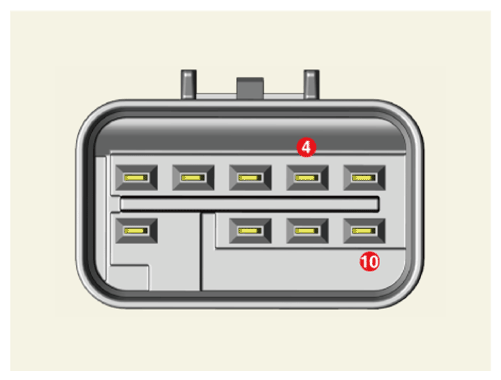

Check fuel pump operation by connecting ground to terminal 4 (-) and power to terminal 10 (+) of connector.

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
4	(-)
10	(+)
