LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Kia
>>
2025
>>
Seltos X-Line
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System - 2.0L
>>
Alternator
>>
Components And Components Location
>>
Component Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Location

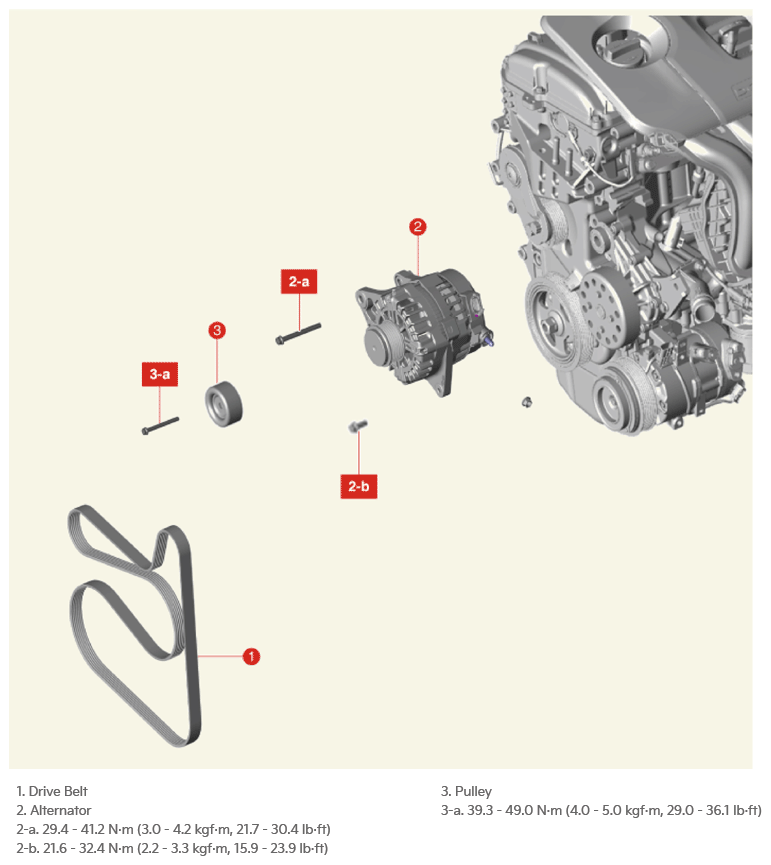

Fig 1: Alternator Components Location With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

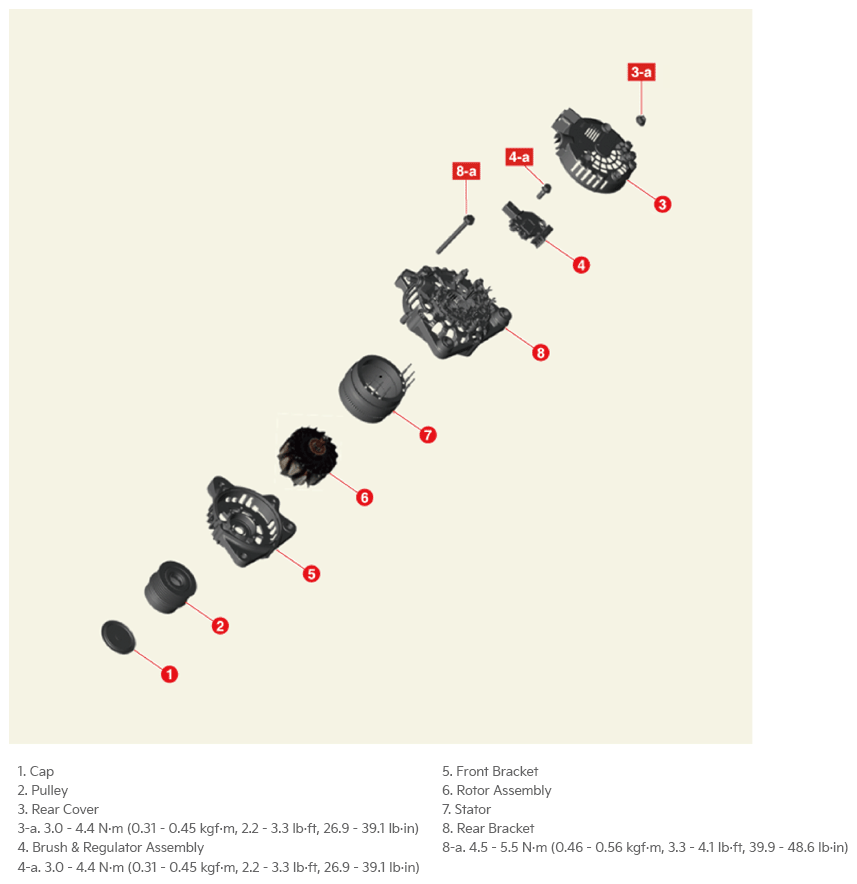

Fig 2: Alternator Components Location With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
