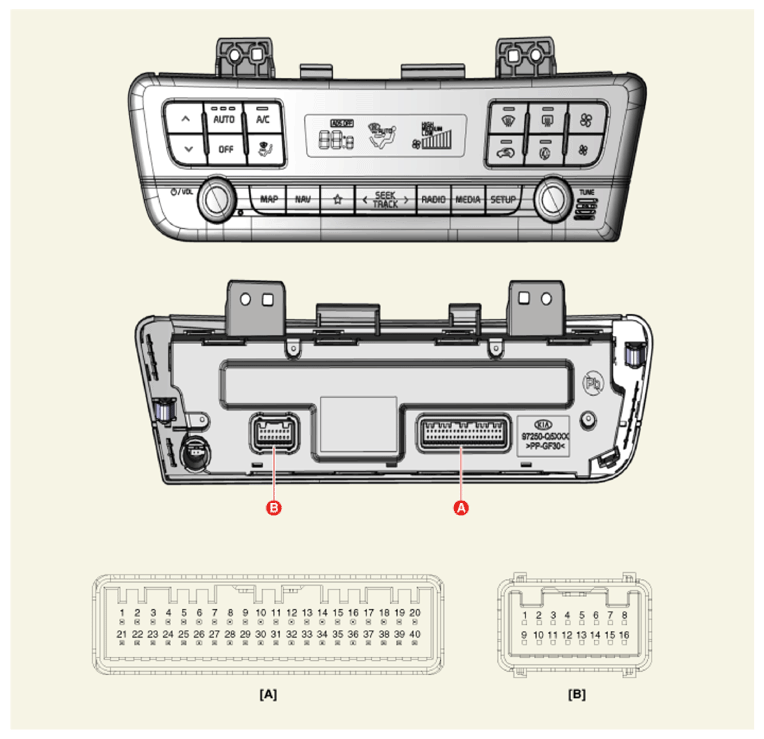

| 1 |
Battery (+) |
- |
| 2 |
- |
- |
| 3 |
ILL (+) (TAIL) |
- |
| 4 |
Sensor ground REF (+5V) |
Defogging actuator (Feedback) |
| 5 |
Mode control actuator (Feedback) |
Defogging actuator (Open) |
| 6 |
Temperature actuator (Feedback) |
Defogging actuator (Close) |
| 7 |
Intake actuator (Feedback) |
- |
| 8 |
Evaporator temperature sensor (+) |
Rear glass defogger indicator |
| 9 |
Ambient temperature senor (+) |
Rear glass defogger switch |
| 10 |
Mode control actuator (Vent) |
- |
| 11 |
Mode control actuator (Def) |
- |
| 12 |
Temperature actuator (Cool) |
Defog (TEMP) |
| 13 |
Temperature actuator (Warm) |
Defog (SCK) |
| 14 |
Intake actuator (Fresh) |
Defog (DATA) |
| 15 |
Intake actuator (Recirculation) |
- |
| 16 |
HTD (Rear defog indicator) |
Ground |
| 17 |
Rear defogging switch |
- |
| 18 |
Blower relay |
| 19 |
- |
| 20 |
ILL (+) (RHEOSTAT) |
| 21 |
IG2 |
| 22 |
IG 1 |
| 23 |
Blower motor (+) |
| 24 |
Photo sensor (-) |
| 25 |
- |
| 26 |
- |
| 27 |
- |
| 28 |
- |
| 29 |
- |
| 30 |
AVNT head unit keyboard reset |
| 31 |
Detent out (-) |
| 32 |
- |
| 33 |
P-CAN (HIGH) |
| 34 |
P-CAN (LOW) |
| 35 |
FET (Drain Feedback) |
| 36 |
FET (Gate) |
| 37 |
ECV (+) |
| 38 |
ECV (-) |
| 39 |
Sensor ground (-) |
| 40 |
Ground (-) |
