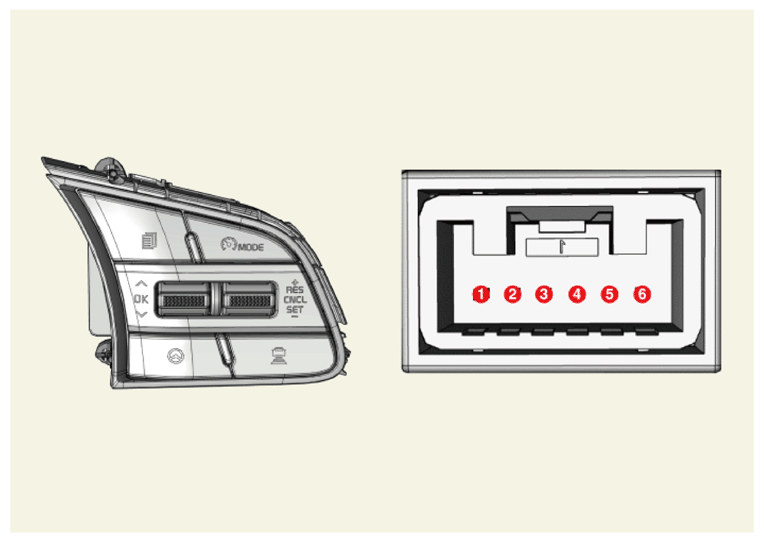

Connector And Terminal Function

G16426526Courtesy of KIA MOTORS AMERICA, INC.
Pin No Connector
1 Trip switch 1 input (+)
2 Trip switch 2 input (+)
3 ILL (+)
4 -
5 ILL (-)
6 Trip switch input (-)
