Repair Procedures: Inspection

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

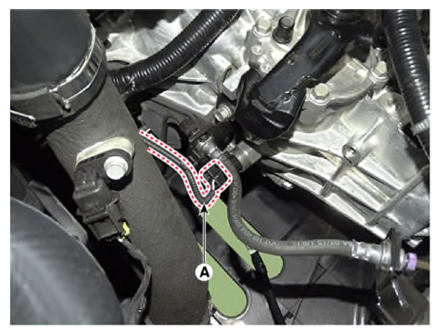

  2. Disconnect the neutral switch connector (A).
    G14561113Courtesy of KIA MOTORS AMERICA, INC.
  3. Check the continuity between power terminal and signal terminal.
G14561114Courtesy of KIA MOTORS AMERICA, INC.
