Components And Components Location: Component

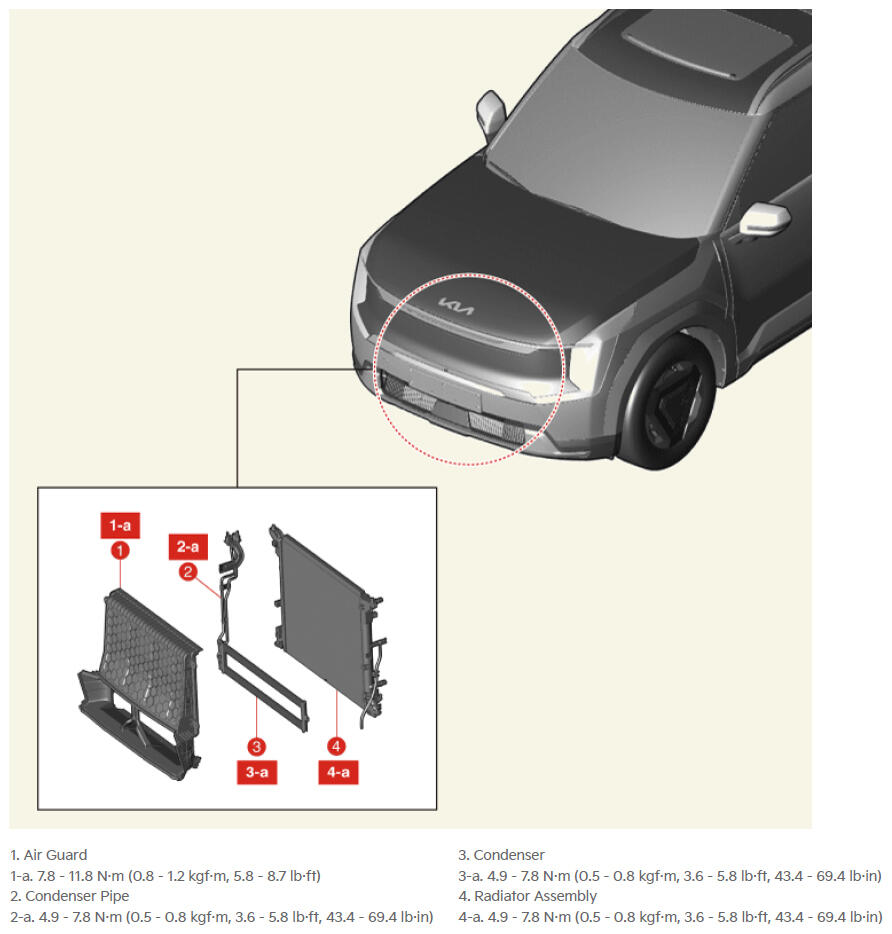

Fig 1: Radiator Components Location With Torque Specifications
G16894889Courtesy of KIA MOTORS AMERICA, INC.
