Inspection Procedure

  1. Check related fuse(s) or relay(s).
  2. Check auxiliary battery terminals and charge status.

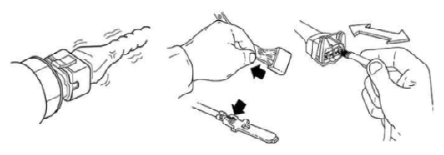

  3. Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    G15839614Courtesy of KIA MOTORS AMERICA, INC.

    Good

    • Go to "CIRCUIT INSPECTION" procedure.

    No Good
