Removal And Installation: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION . If not, it may cause serious accidents due to electric shock or short circuit.
When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and HIGH VOLTAGE SHUT-OFF PROCEDURES .

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD ")

(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 4WD ")
Remove the floor console assembly.
(Refer to Body - " FLOOR CONSOLE ASSEMBLY ")

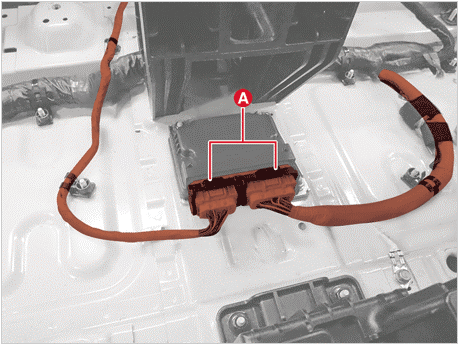

Disconnect the connector (A) by pulling the connector lock lever.

Courtesy of KIA MOTORS AMERICA, INC.

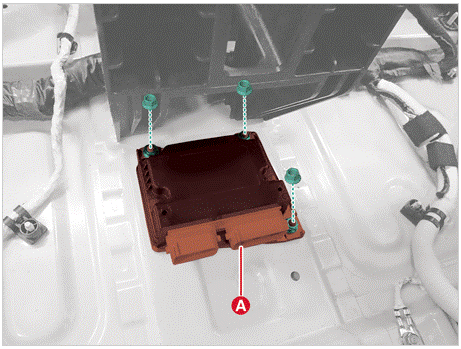

Remove the SRS Control Module (SRSCM) (A) after removing the nuts.
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not damage the SRS Control Module (SRSCM) connector.
