Driver Airbag (DAB) Module

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION . If not, it may cause serious accidents due to electric shock or short circuit.
When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and HIGH VOLTAGE SHUT-OFF PROCEDURES .

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD ")

(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 4WD ")

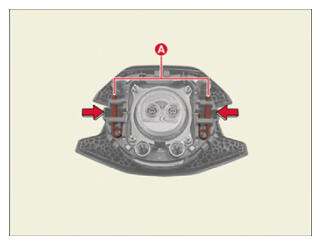

Remove the driver airbag module by pressing the fastening pin using the service hole (A) on the back of the steering wheel.

Courtesy of KIA MOTORS AMERICA, INC.

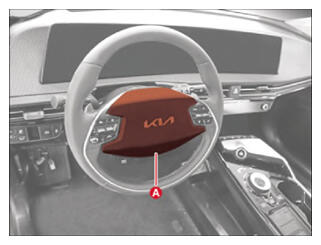

Remove the Driver Airbag (DAB) module (A).

Courtesy of KIA MOTORS AMERICA, INC.

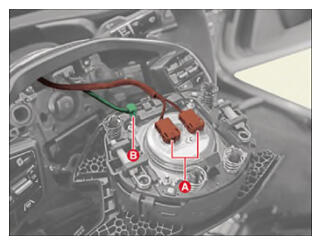

Disconnect the airbag module connector (A) and horn connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
