Deployment Outside Of The Vehicle

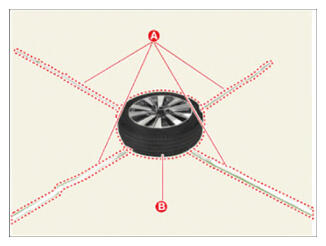

After spreading the rope (A) on the floor in a cross shape, put the tire (B) equipped with the wheel on the floor.

Courtesy of KIA MOTORS AMERICA, INC.

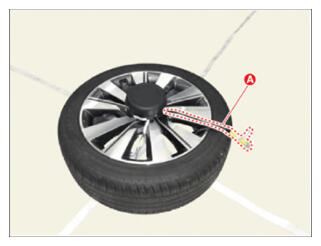

Connect the deployment adapter (A) (0K57A - 3U100A) to the airbag module/pretensioner.

Courtesy of KIA MOTORS AMERICA, INC.

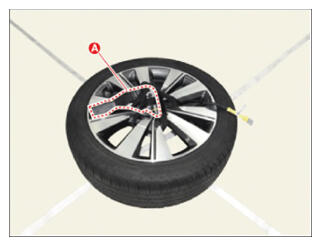

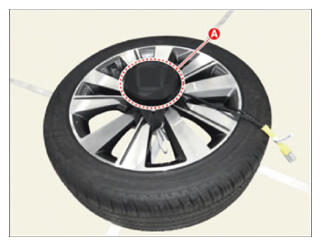

Fix the airbag module/pretensioner (A) to the wheel.
[Airbag Module]

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: If the airbag deployment surface faces downward instead of upward, the airbag may spring up and cause serious injury to the worker.

[Pretensioner]

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Install the end of the piston tube of the anchor pretensioner, facing the floor.

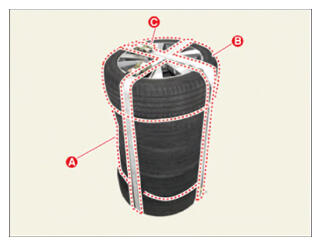

After putting the three waste tires (A), put the tire (B) with the wheel on it.
Fix the tire by using the ratchet strap (C).

Courtesy of KIA MOTORS AMERICA, INC.

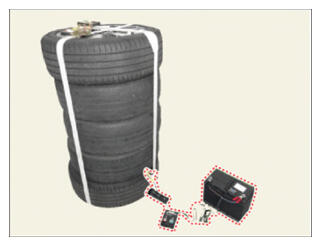

After connecting the battery, connect the airbag deployment tool (0957A - 34100A) to the deployment adapter (0K57A - 3U100A).

Courtesy of KIA MOTORS AMERICA, INC.

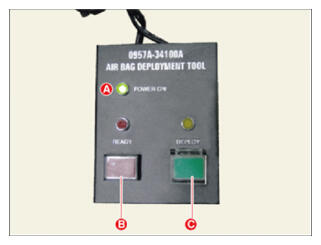

After connecting the battery, when the POWER ON (A) illuminates on the tool for deploying the airbag, press READY (B) button and then press DEPLOY (C) to deploy the airbag.

Courtesy of KIA MOTORS AMERICA, INC.

Information

When the airbag is deployed, loud noise is generated, visually confirmed, and after rapid inflation, it contracts slowly.
Place the deployed airbag in a sturdy plastic bag and sealed securely, then dispose it.
