Rear Motor

WARNING: This page is about a different variant/trim than selected.

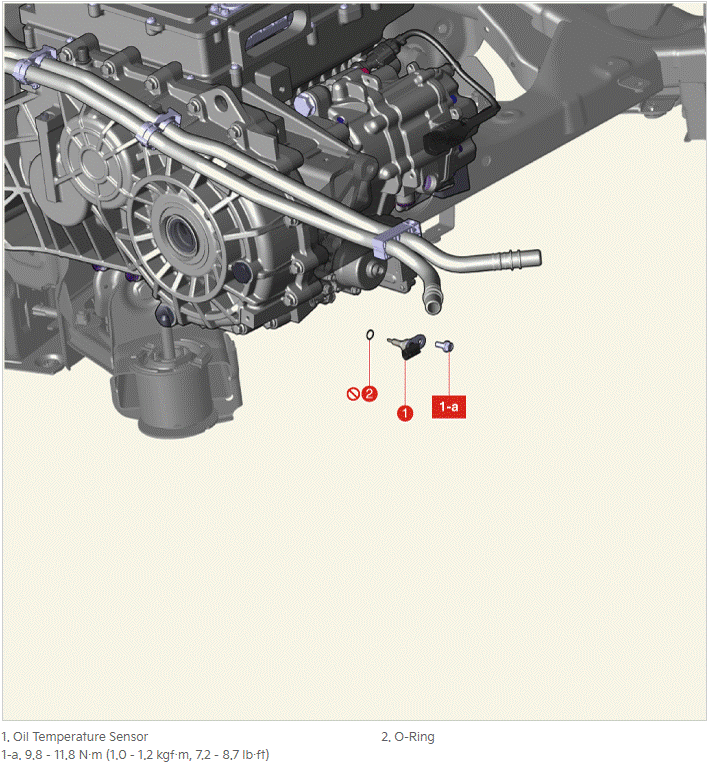

Fig 1: Rear Motor Components Location With Torque Specification
G15814112Courtesy of KIA MOTORS AMERICA, INC.
