Removal And Installation: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative (-) terminal and the high voltage service interlock connector.
(Refer to Battery Control System - "AUXILIARY BATTERY (12V) )

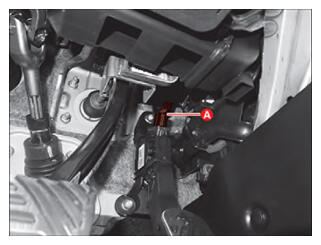

- Disconnect the connector (A).

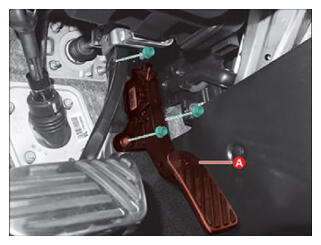

- Remove the accelerator pedal module (A) after removing the nuts.
Tightening torque:
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb.ft)
