Monitor KDS Data: Notes
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||

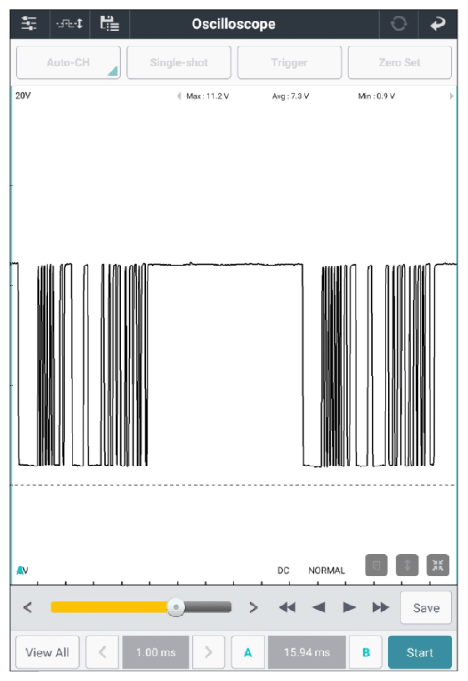

| LIN oscilloscope (IBU) |
|
IBU connector | 22 (IMMO K-Line) | Chassis ground | - | Fig.1 |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "SMK STATUS INFORMATION " procedure.
