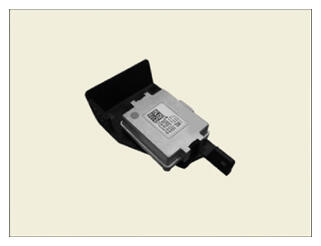

ADAS Driving ECU: Removal
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION . If not, it may cause serious accidents due to electric shock or short circuit.
- When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and HIGH VOLTAGE SHUT-OFF PROCEDURES .
- Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to Battery Control System - " AUXILIARY BATTERY (12 V) (2WD) ")
(Refer to Battery Control System - " AUXILIARY BATTERY (12 V) (4WD) ")
- Remove the ADAS parking ECU.
(Refer to Advanced Driver Assistance System Parking - " ADAS PARKING ECU ")

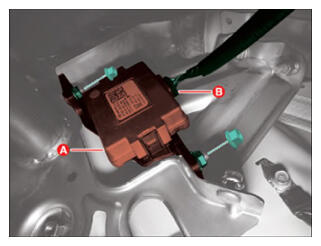

- Remove the ADAS driving ECU (A).
