Removal & Installation: Removal

  1. You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.
    1. Connect the VCI-II wireless adapter to the Data Link Connector (DLC) in driver side crash pad lower panel, and turn on KDS.
    2. Select the 'Vehicle selection' and 'S/W Management'.
    3. Select "Front View Camera" and "System Identification".

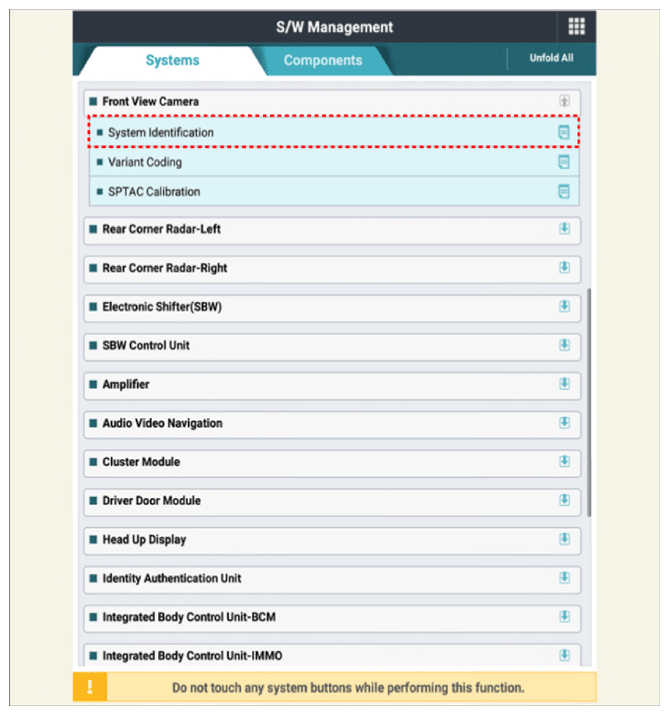

    G14806942Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the battery negative (-) terminal.

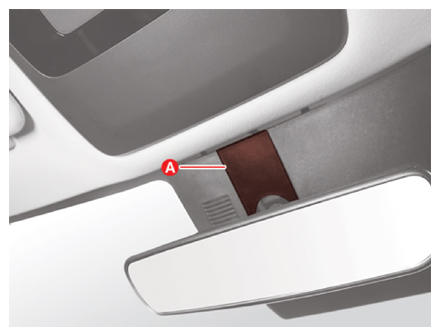

  3. Remove the inside rearview mirror cover (A).
    G14806943Courtesy of KIA MOTORS AMERICA, INC.

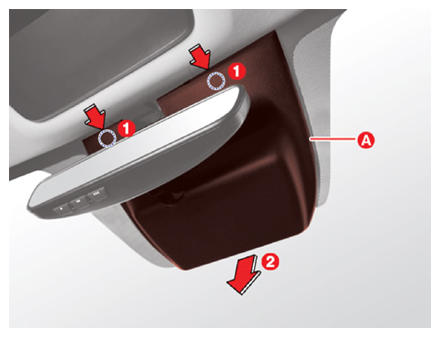

  4. Remove the multi cover (A).
    G14806944Courtesy of KIA MOTORS AMERICA, INC.

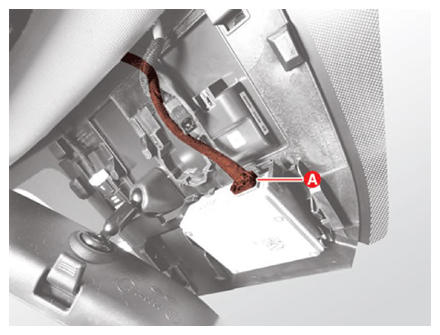

  5. Disconnect the front view camera connector (A).
    G14806945Courtesy of KIA MOTORS AMERICA, INC.

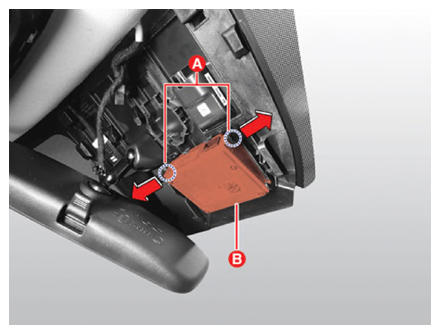

  6. Separate the fixed points (A) of coupler, remove the front view camera (B).
G14806946Courtesy of KIA MOTORS AMERICA, INC.
NOTE: When separating the fixed points (A), be careful not to damage it.
