Engine Control System Diagnosis (13 Of 13)
>>
DTC P2B95-00: Cold Start Injection Pulse Performance
>>
Wiring Inspection
>>

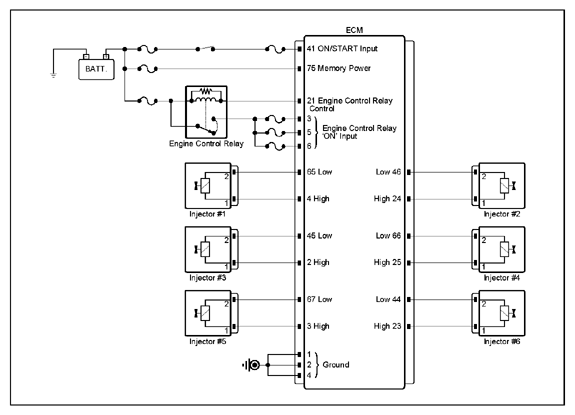

Circuit Inspection
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

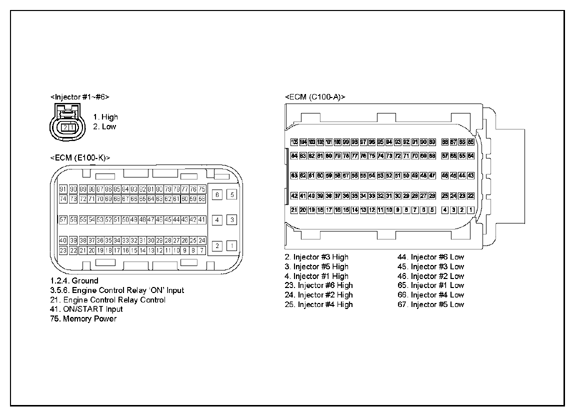

Circuit Inspection: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
