Front Door Lock Module
- Remove the front door module.
(Refer to Body - "FRONT DOOR MODULE ")

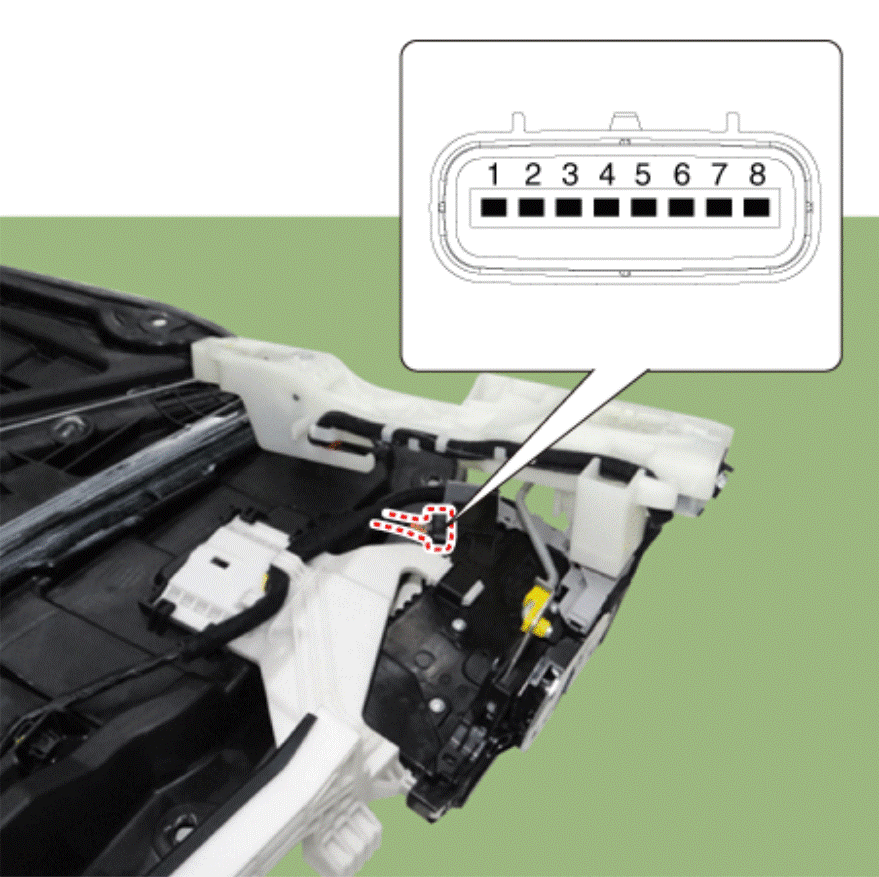

- Disconnect the connector from the door lock module.
Terminal Function LH RH 1 - Motor (CL) 2 - Motor (COM) 3 Switch (COM) - 4 Lock/Unlock Switch (AJAR) 5 Switch (AJAR) Lock/Unlock 6 - Switch (COM) 7 Motor (COM) - 8 Motor (CL) - - Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
[LH]
| Terminal | Function | |
|---|---|---|
| Central Lock | Central Unlock | |
| 8 | + | - |
| 7 | - | + |
| 3 - 4 | ON → OFF | OFF → ON |
| 3 - 5 | Door open & half latching: ON | Full latching: OFF |
[RH]
| Terminal | Function | |
|---|---|---|
| Central Lock | Central Unlock | |
| 1 | + | - |
| 2 | - | + |
| 6 - 5 | ON → OFF | OFF → ON |
| 6 - 4 | Door open & half latching: ON | Full latching: OFF |
