Driver's Side

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the lower duct (A) after loosening the screw.

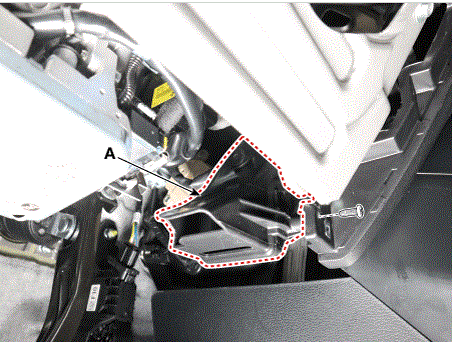

    G00674315Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.

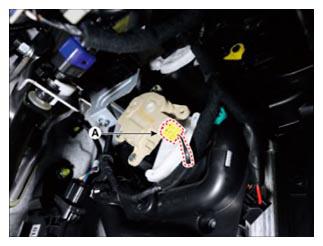

    G15717310Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the temperature actuator (A) after loosening the screws.

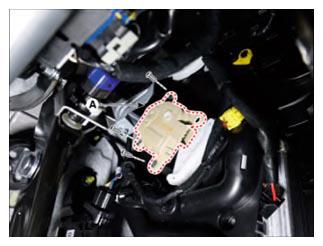

    G15717311Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in reverse order of removal.
