Components And Components Location: Components

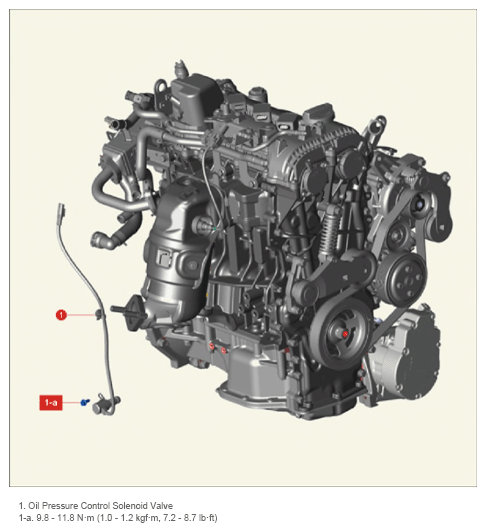

Fig 1: Oil Pressure Control Solenoid Valve Components Location With Torque Specifications
G15787302Courtesy of KIA MOTORS AMERICA, INC.
