Components And Components Location

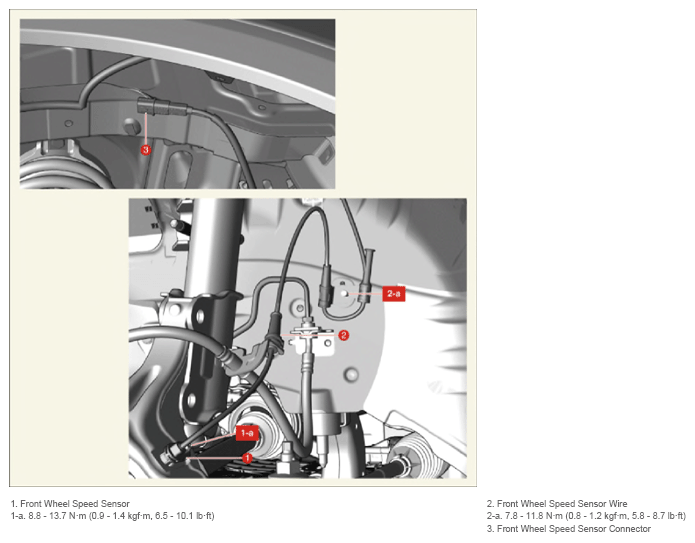

Fig 1: Front Wheel Speed Sensor Components Location With Torque Specifications
G15789369Courtesy of KIA MOTORS AMERICA, INC.
