Front Door Lock Module
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
- Remove the front door module.
(Refer to Body - "FRONT DOOR MODULE ")

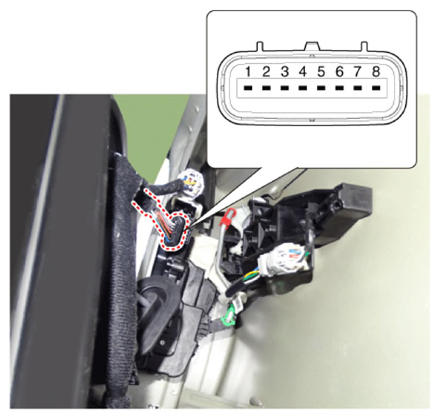

- Disconnect the connector from the door lock actuator.

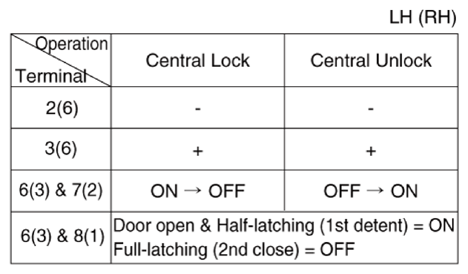

No. Description Left Right 1 - Ajar switch 2 Motor COM Lock/Unlock switch 3 Motor Switch COM 4 Key lock switch Key unlock switch 5 Key unlock switch Key lock switch 6 Switch COM Motor 7 Lock/Unlock switch Motor COM 8 Ajar switch - - Check actuator operation by connecting power and ground as shown in the illustration below. To prevent damage to the actuator, apply battery voltage only momentarily.
