[Heated Steering Wheel Control Unit]

Information

Integrated Central Control Unit (ICU) control the Heated Steering Wheel.

1. Disconnect the battery negative (-) terminal.
2. Remove the crash pad lower panel.

   (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

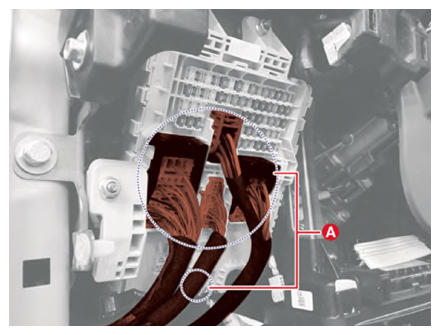

3. Remove the Integrated Central Control Unit (ICU) connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

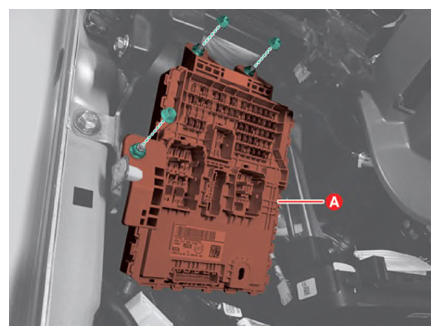

4. Remove the mounting nuts, then remove the Integrated Central Control Unit (ICU) (A).

   Courtesy of KIA MOTORS AMERICA, INC.

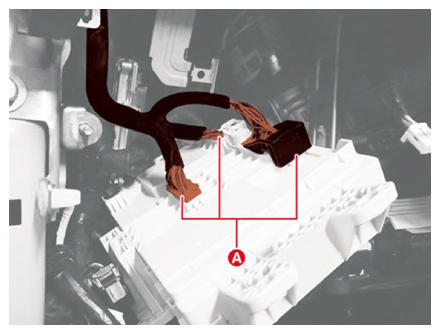

5. Remove the Integrated Central Control Unit (ICU) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
