Component Location

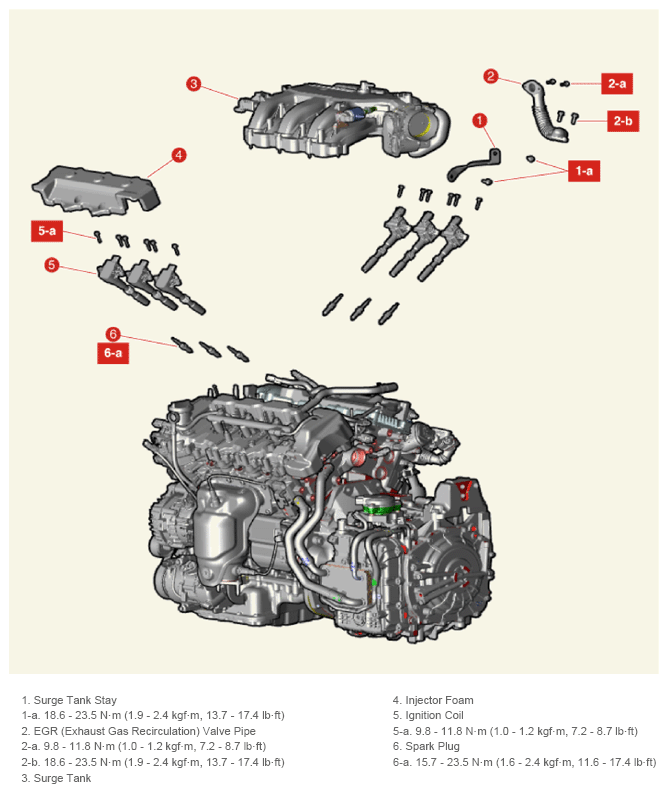

Fig 1: Ignition Coil Components Location With Torque Specification
G14797024Courtesy of KIA MOTORS AMERICA, INC.
