Removal & Installation: Removal

Disconnect the battery negative (-) terminal.

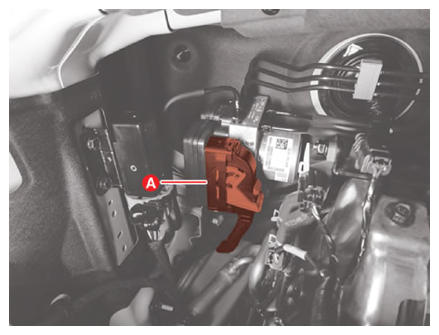

Pull up the lock of the ESC control unit (HECU) connector and then disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

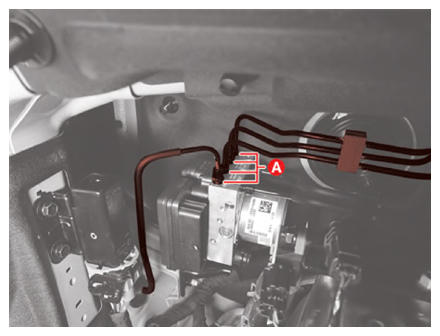

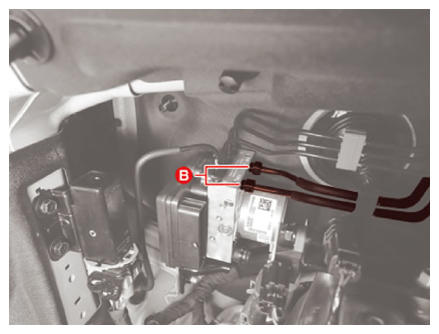

Separate the brake tube by removing the flare nuts (A), (B) connected to the ESC control unit (HECU).
Tightening torque
1. 13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb.ft)
2. 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

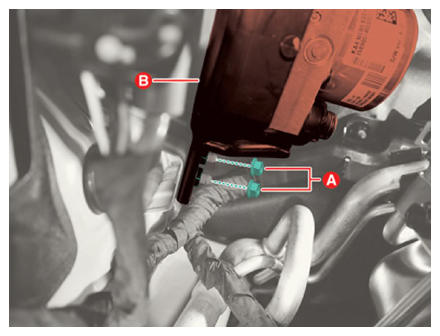

Remove the bracket mounting nuts (A) and remove the ESC control unit (HECU) (B) from the vehicle.
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not drop or impact the ESC control unit (HECU).

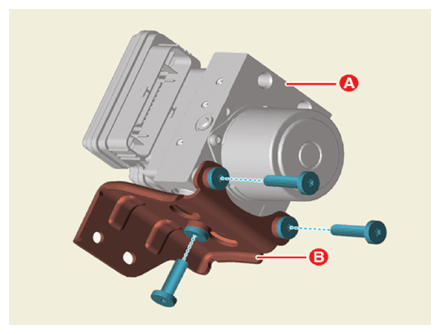

Remove the bolts to remove the bracket (B) from the ESC control unit (HECU) (A).
