Schematic Diagram
>>
Connector and Terminal Function
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

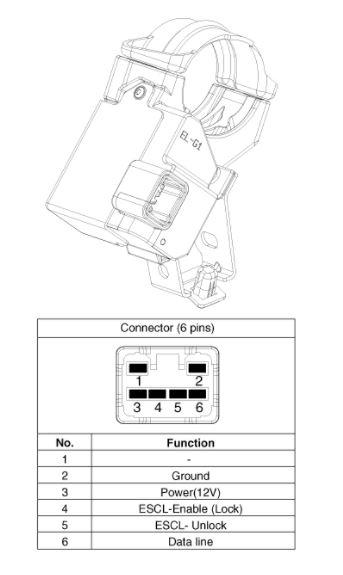

Connector and Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
