Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Disconnect the negative (-) battery terminal.

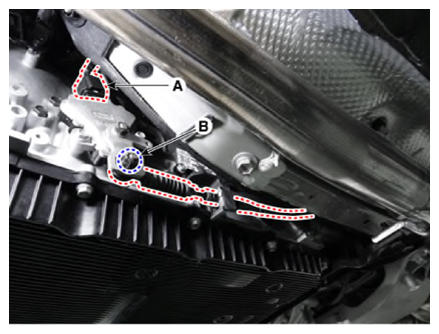

  3. Inhibitor switch connector (A) and remove the nut (B).
    G14991045Courtesy of KIA MOTORS AMERICA, INC.

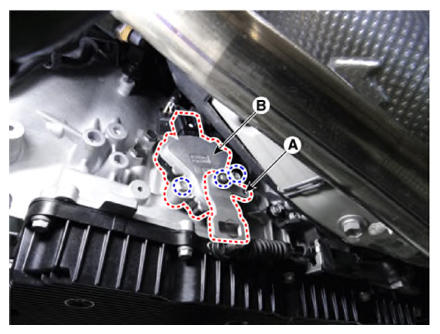

  4. Remove the manual control lever (A) and then remove the inhibitor switch (B).
G14991046Courtesy of KIA MOTORS AMERICA, INC.
