Removal & Installation

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the driver airbag (DAB) module and clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  4. Remove the steering column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

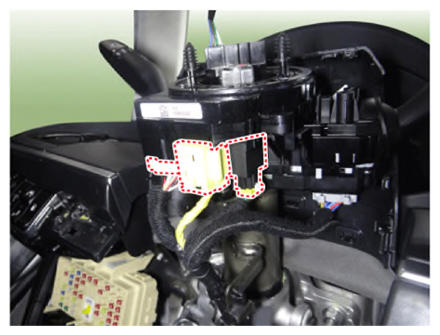

  5. Disconnect the clock spring connector.
    G14997166Courtesy of KIA MOTORS AMERICA, INC.

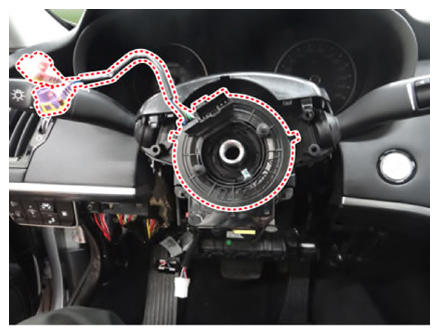

  6. Remove the clock spring from the steering column.
    G14997167Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.
