Engine Control System Diagnosis (PHEV) (7 Of 10)
>>
DTC P1932-00: Valve Duration Control Module EEPROM Internal Fault
>>
DTC Information
>>

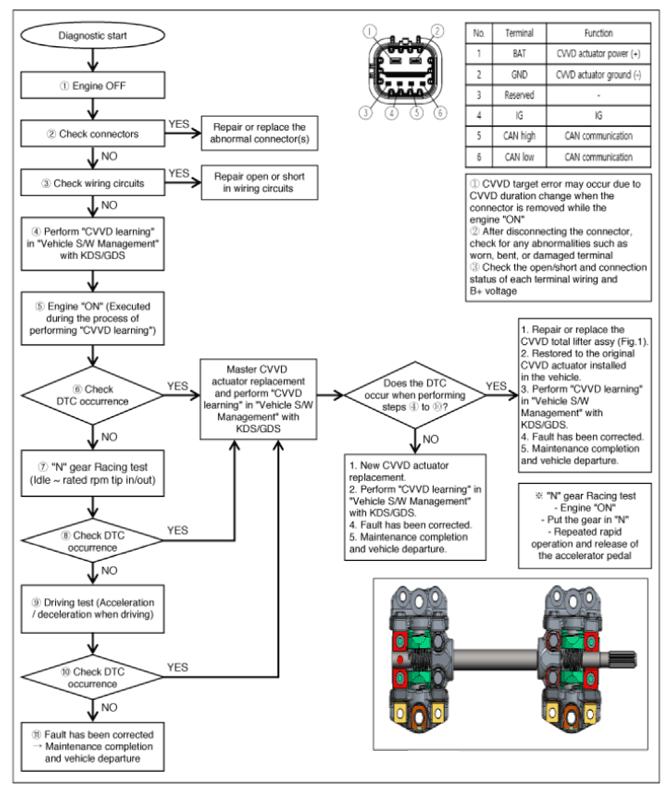

Diagnostic Flow Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
