Engine Control System Diagnosis (PHEV) (10 Of 10)
>>
DTC U2002-00: Lost Communication With CVVD Motor Control Module
>>
DTC Information
>>

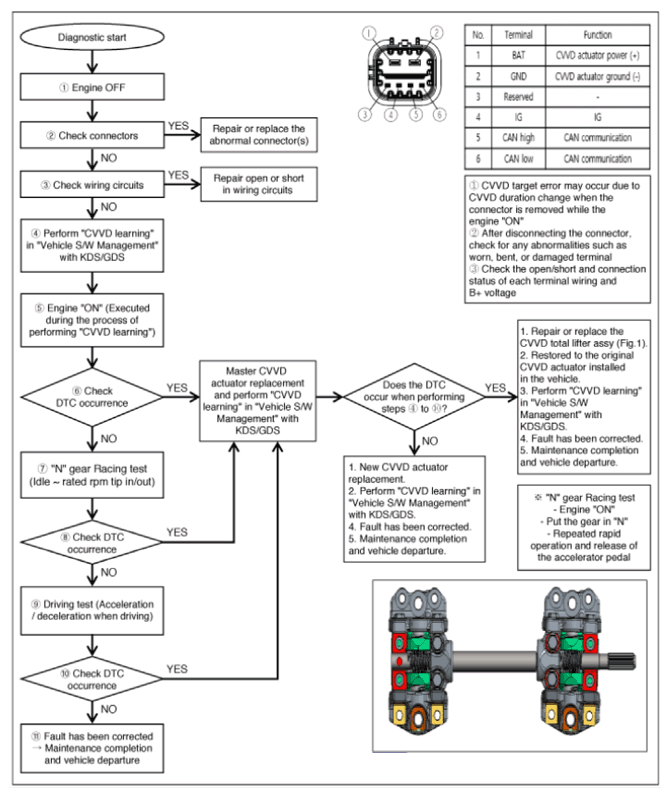

Diagnostic Flow Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
