Components & Components Location: Component

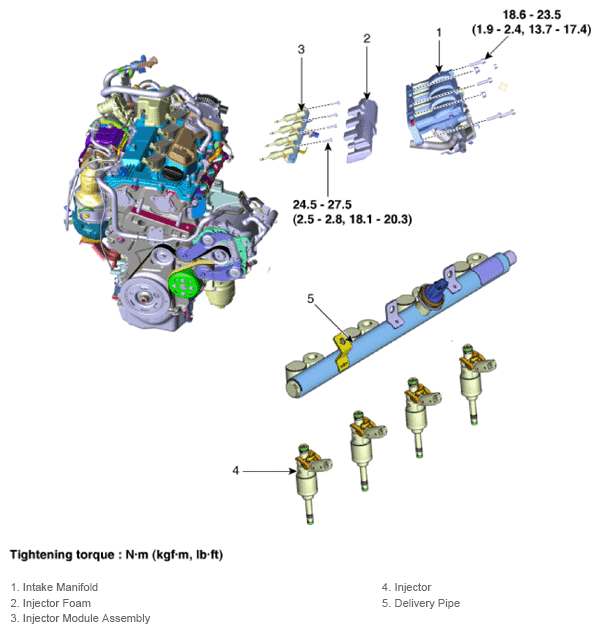

Fig 1: Injector Components Location With Torque Specification
G14957199Courtesy of KIA MOTORS AMERICA, INC.

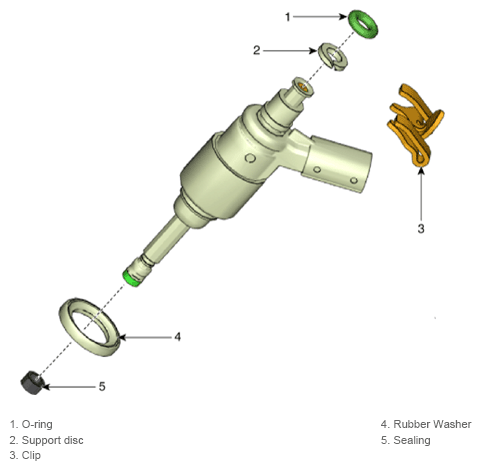

G14957200Courtesy of KIA MOTORS AMERICA, INC.
