Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

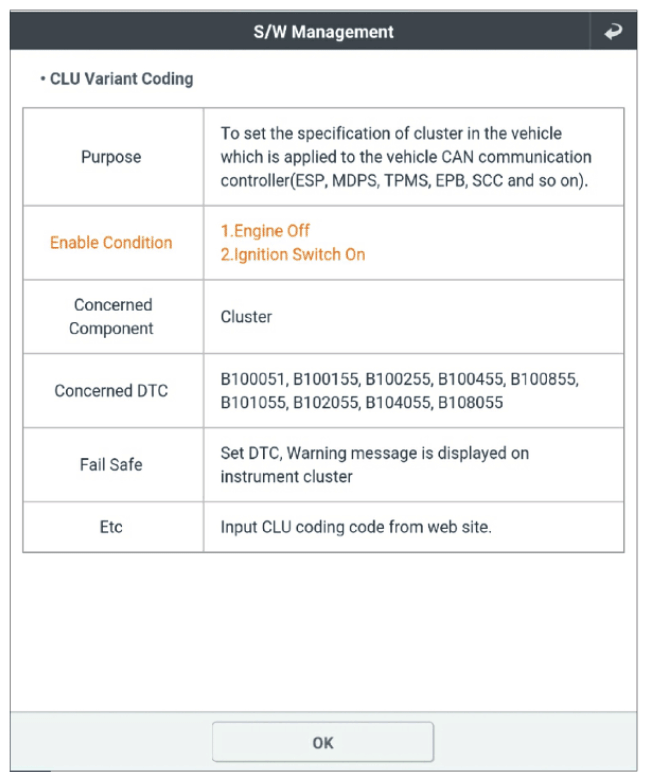

G14565616Courtesy of KIA MOTORS AMERICA, INC.

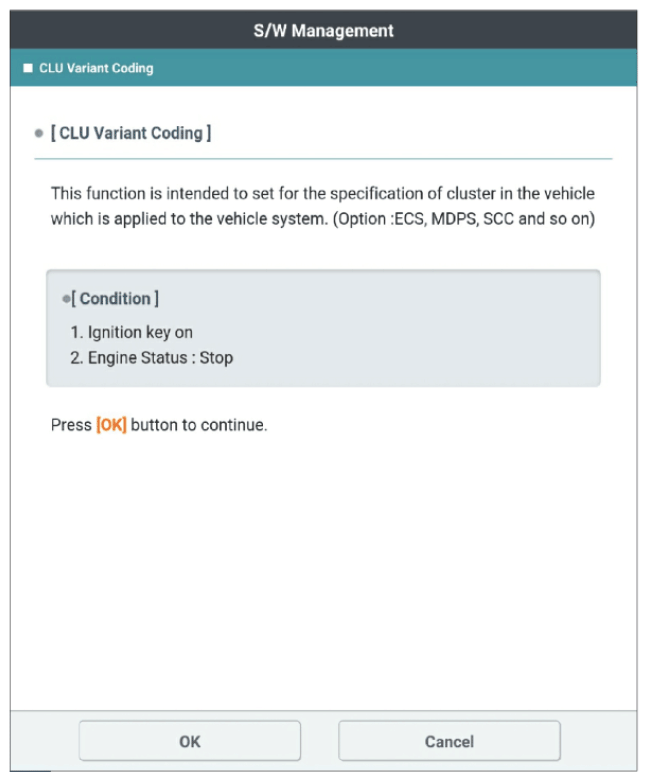

G14565617Courtesy of KIA MOTORS AMERICA, INC.

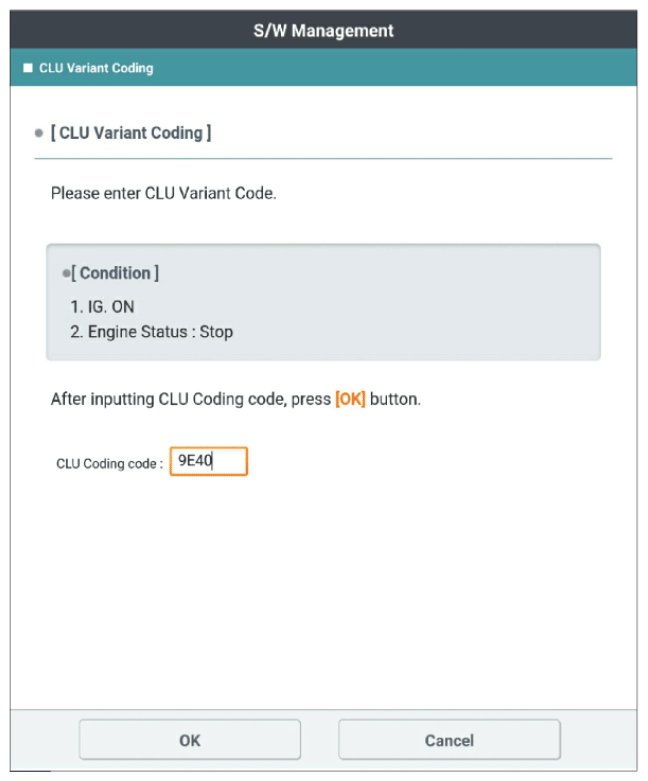

G14565618Courtesy of KIA MOTORS AMERICA, INC.

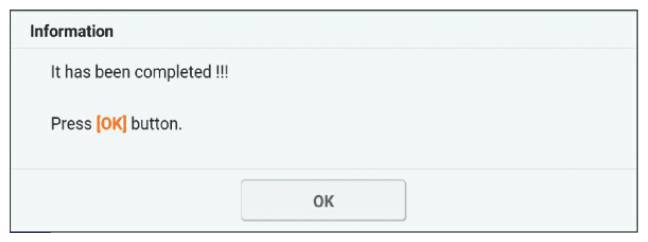

G14565619Courtesy of KIA MOTORS AMERICA, INC.

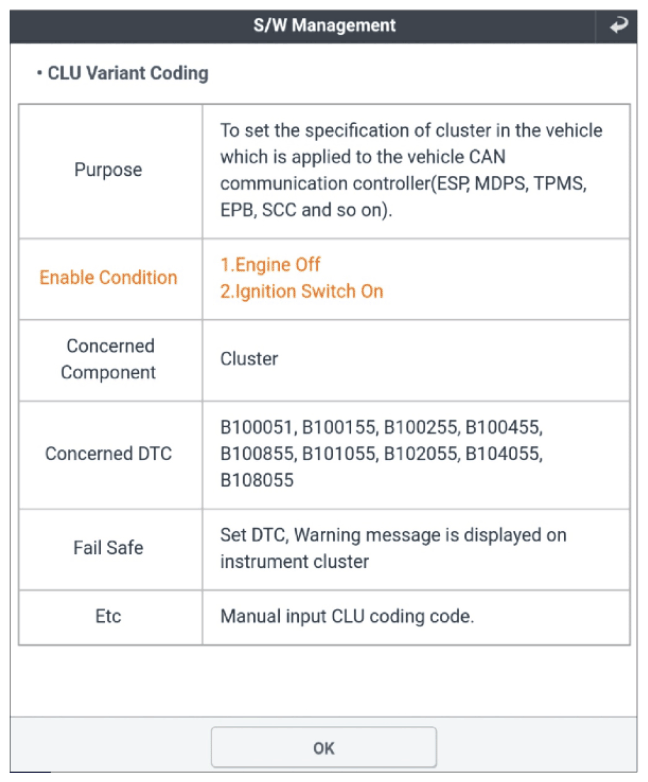

G14565620Courtesy of KIA MOTORS AMERICA, INC.

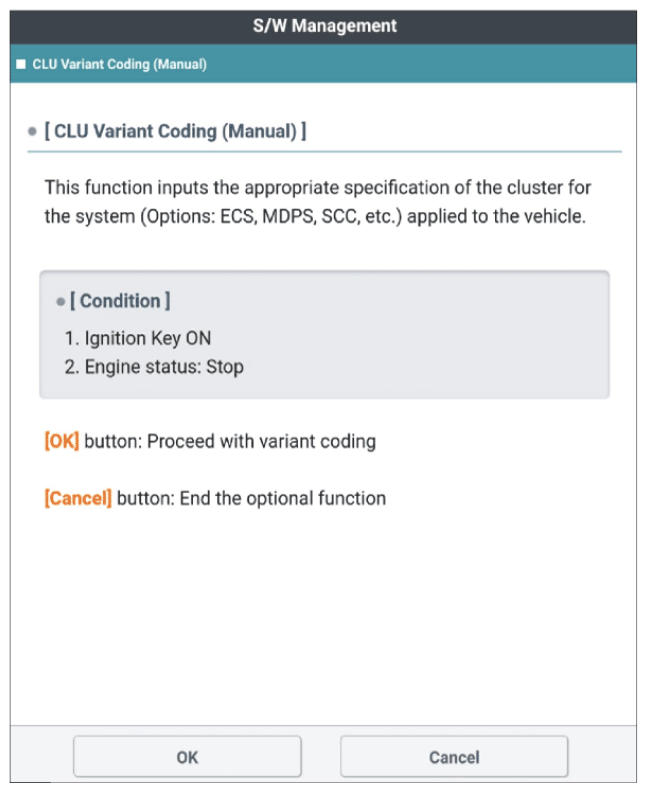

G14565621Courtesy of KIA MOTORS AMERICA, INC.

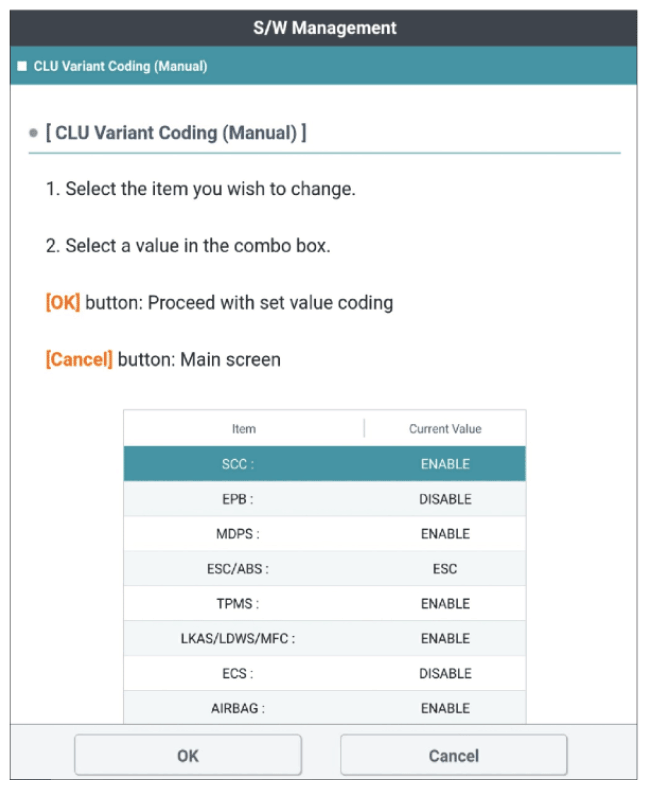

G14565622Courtesy of KIA MOTORS AMERICA, INC.

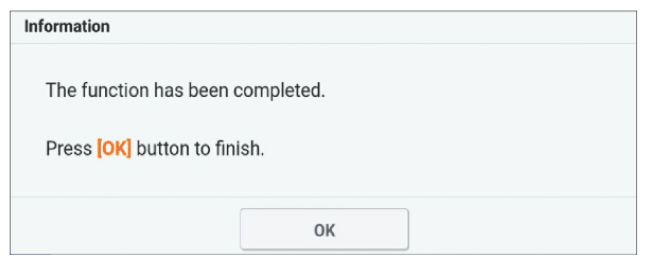

G14565623Courtesy of KIA MOTORS AMERICA, INC.
