Connector Assembly Status Test

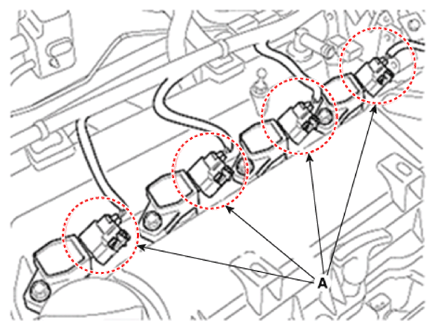

  1. Remove the connector (A) and reinstall it.
    G14560692Courtesy of KIA MOTORS AMERICA, INC.

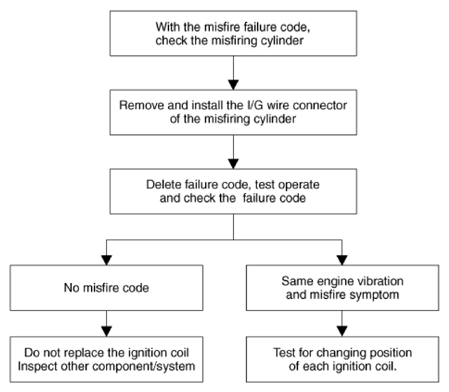

    G14560693Courtesy of KIA MOTORS AMERICA, INC.
