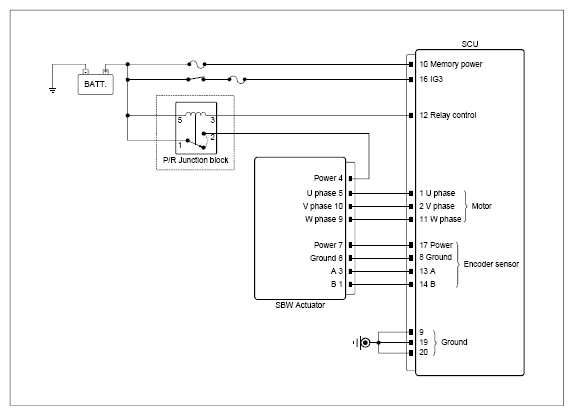

Circuit Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Power inspection (SBW actuator ↔ Chassis ground) |
|
SBW actuator connector | 4 (power) | Chassis ground | - | B+ |
| Voltage inspection (SBW actuator relay ↔ Chassis ground) |
|
SBW actuator relay connector | 1 (relay power) | Chassis ground | - | B+ |
| SBW actuator relay connector | 5 (coil power) | Chassis ground | - | Approx. 0V | ||
| SBW actuator relay connector | 3 (coil control) | Chassis ground | - | Approx. 2.5V | ||
| SBW actuator relay connector | 2 (SBW power) | Chassis ground | - | Approx. 0V | ||
| Power inspection (SBW actuator ↔ Chassis ground) |
|
SBW actuator connector | 4 (power) | Chassis ground | - | B+ |
| Open in circuit inspection (SBW actuator relay ↔ SBW actuator) |
|
SBW actuator relay connector | 2 (power) | SBW actuator connector | 4 (power) | Approx. below 1Ω |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and go to "Verification of Repair " procedure.
No Good
- Repair or replace as necessary and then, go to "Verification of Repair " procedure.
- If no problems were found with the circuits or connectors, replace the SBW actuator and go to "Verification of Repair " procedure.
