Circuit Inspection

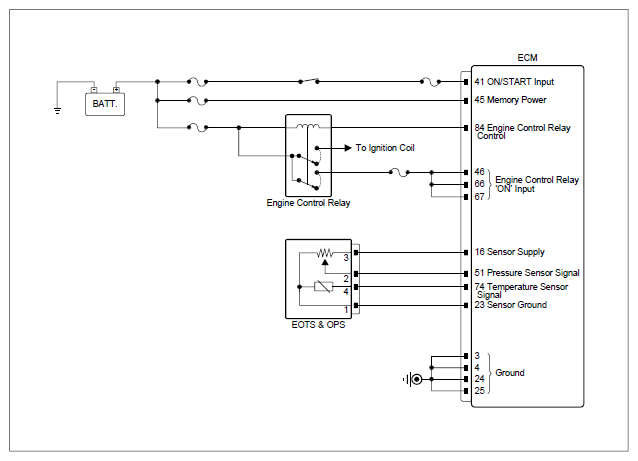

G14816641

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EOTS & OPS connector	4 (signal)	Chassis ground	-	Approx. 5V
	EOTS & OPS connector	1 (ground)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EOTS & OPS connector	4 (signal)	Chassis ground	-	∞ (infinity)Ω
	EOTS & OPS connector	4 (signal)	ECM connector	74 (signal)	Approx. below 1Ω
	EOTS & OPS connector	1 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
