Tailgate Lock Module
- Disconnect the battery negative (-) terminal.
- Remove the tailgate trim.
(Refer to Body - "TAILGATE TRIM ")

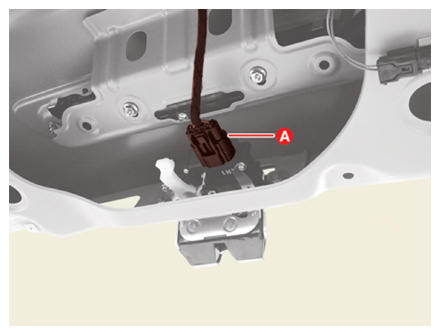

- Disconnect the tailgate lock module connector (A).

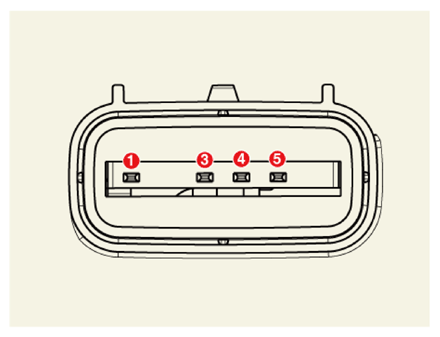

- Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
| Pin | Full Lock | Half Lock | Full Open |
|---|---|---|---|
| 1 | + | + | X |
| 3 | - | - | X |
| 4 - 5 | OFF | ON | ON |
