Vehicle S/W Management

CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC/FCA ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures 1 to 10 below

G13337124

Courtesy of KIA MOTORS AMERICA, INC.

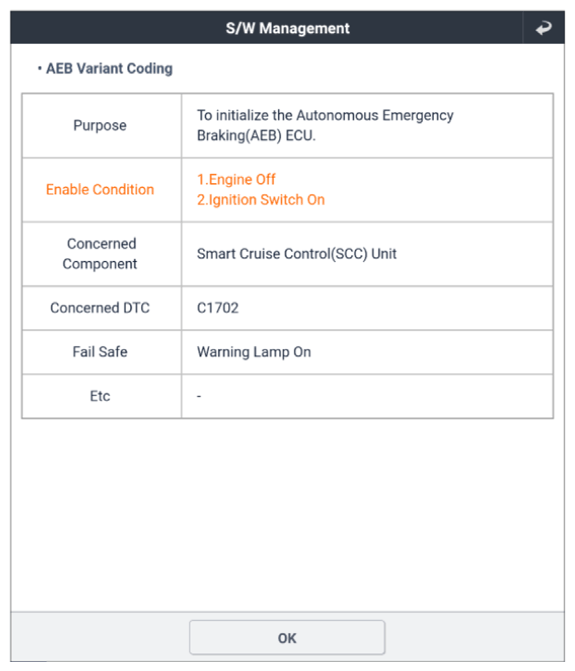

G13337125

Courtesy of KIA MOTORS AMERICA, INC.

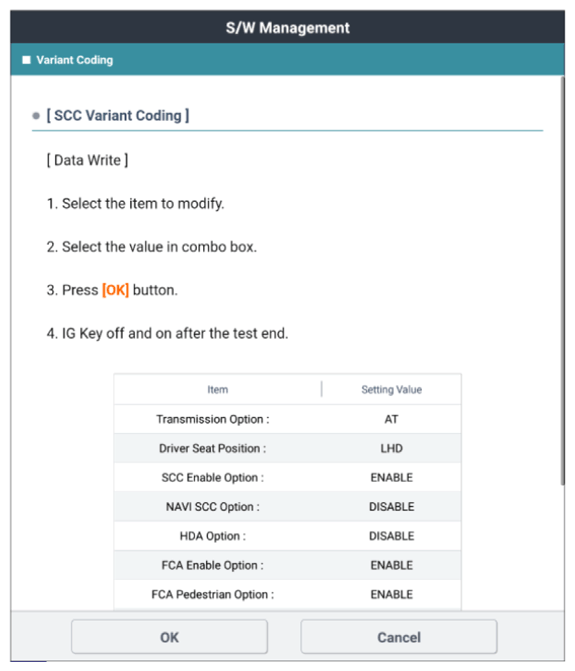

G13337126

Courtesy of KIA MOTORS AMERICA, INC.

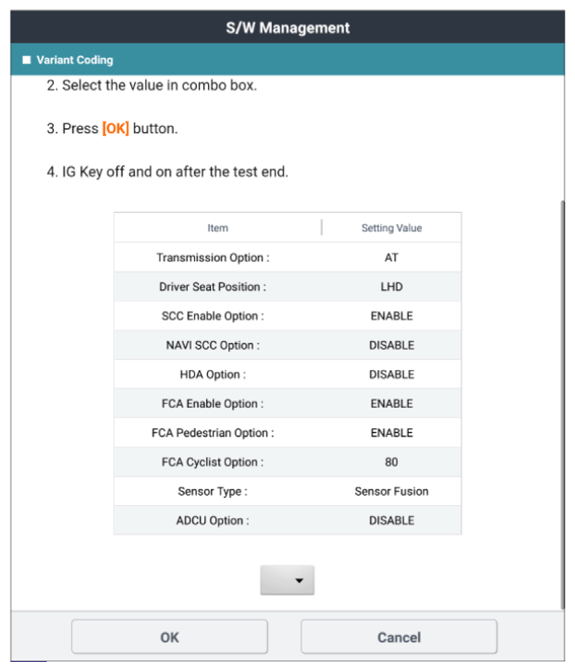

G13337127

Courtesy of KIA MOTORS AMERICA, INC.

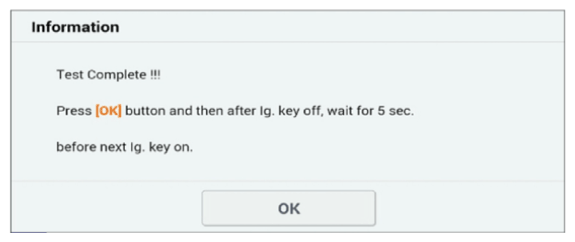

G13337128

Courtesy of KIA MOTORS AMERICA, INC.

G13337129

Courtesy of KIA MOTORS AMERICA, INC.

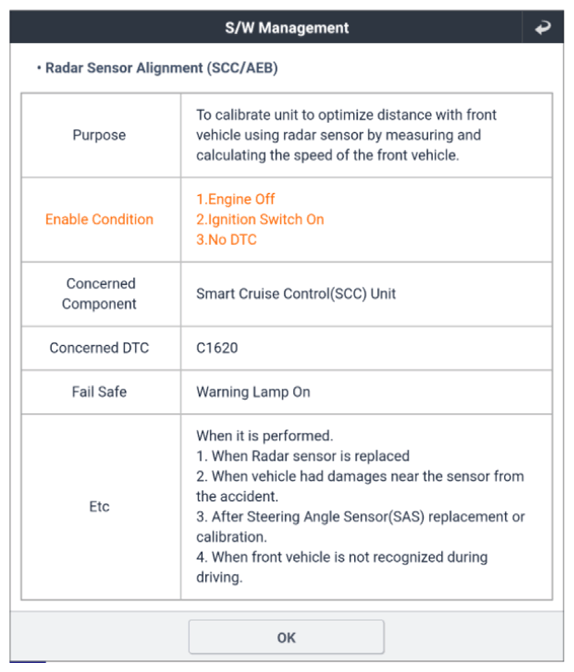

G13337130

Courtesy of KIA MOTORS AMERICA, INC.

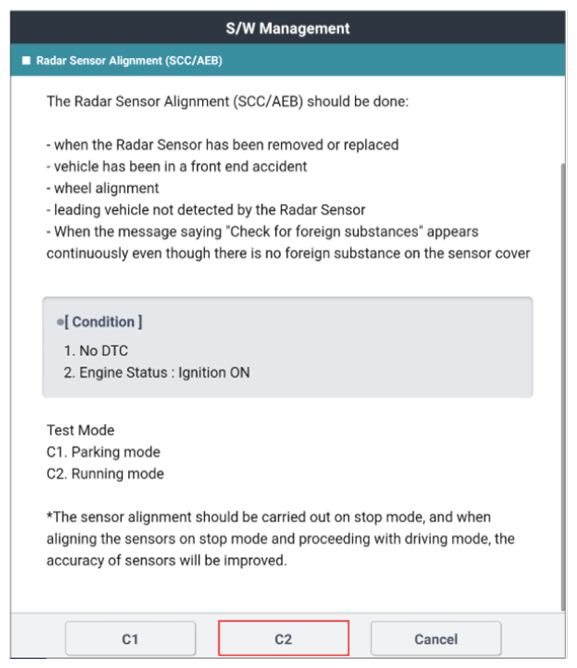

G13337131

Courtesy of KIA MOTORS AMERICA, INC.

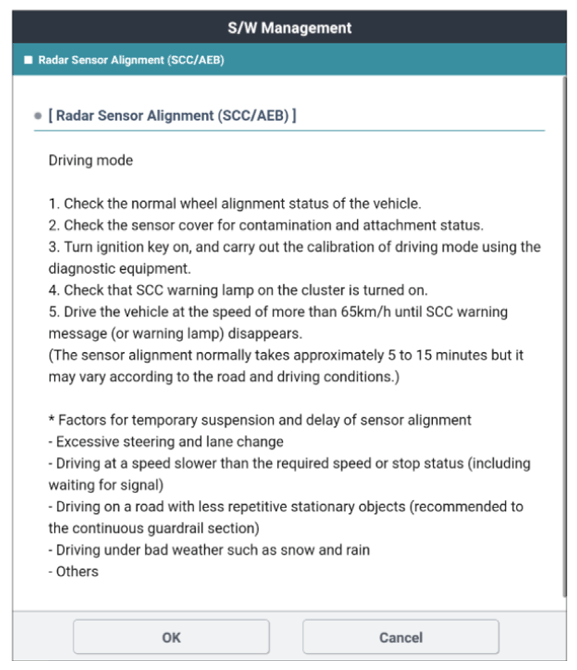

G13337132

Courtesy of KIA MOTORS AMERICA, INC.

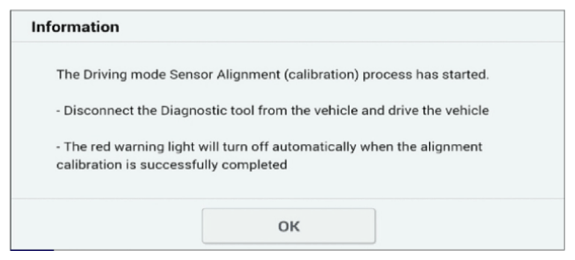

G13337133

Courtesy of KIA MOTORS AMERICA, INC.
