Circuit Diagram

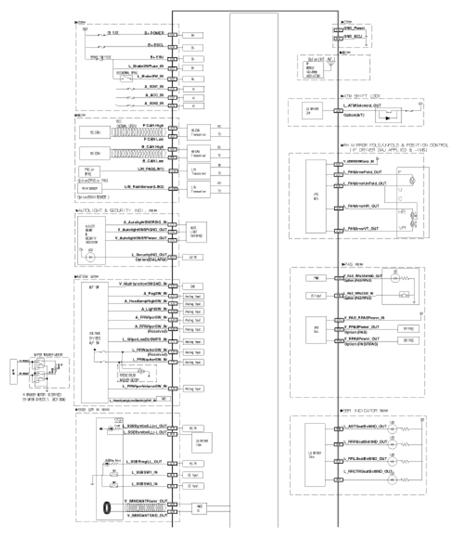

G13426875

Courtesy of KIA MOTORS AMERICA, INC.

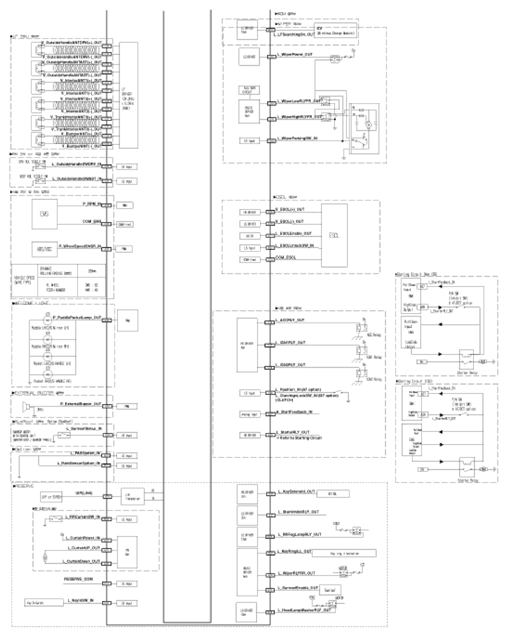

G13426876

Courtesy of KIA MOTORS AMERICA, INC.
