Repair Procedures: Removal

  1. Remove the front seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

  2. Disconnect the connector (A) from lumber support motor.
    G13282815Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the side airbag.

    (Refer to  SIDE AIRBAG (SAB) MODULE  ")

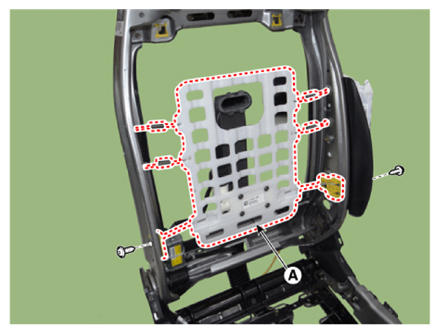

  4. Remove the lumber support (A) after loosening the screws.
    G13282816Courtesy of KIA MOTORS AMERICA, INC.
