Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")

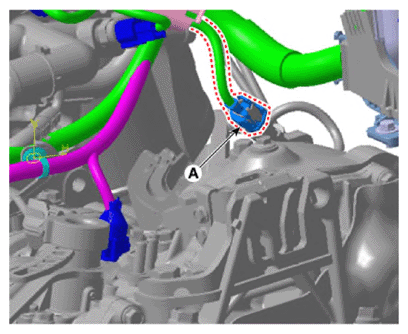

Disconnect the vehicle speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

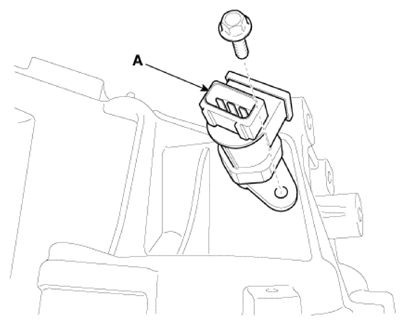

Remove the vehicle speed sensor (A) and driven gear.
Tightening torque:

5.9 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: After removing speed sensor, be careful not to enter dust, foreign matters, etc in speed sensor hole.
Separate the vehicle speed sensor (A) and driven gear (B).

Courtesy of KIA MOTORS AMERICA, INC.
