Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner assembly.

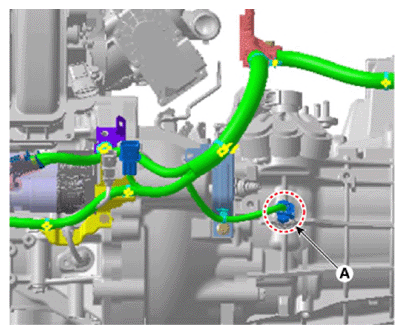

- Disconnect the neutral position switch connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

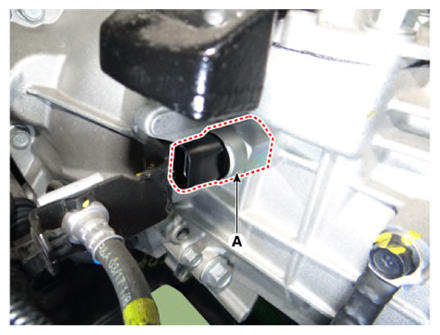

- Remove the neutral position switch.
Tightening torque:
39.2 - 58.9 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
