Circuit Inspection

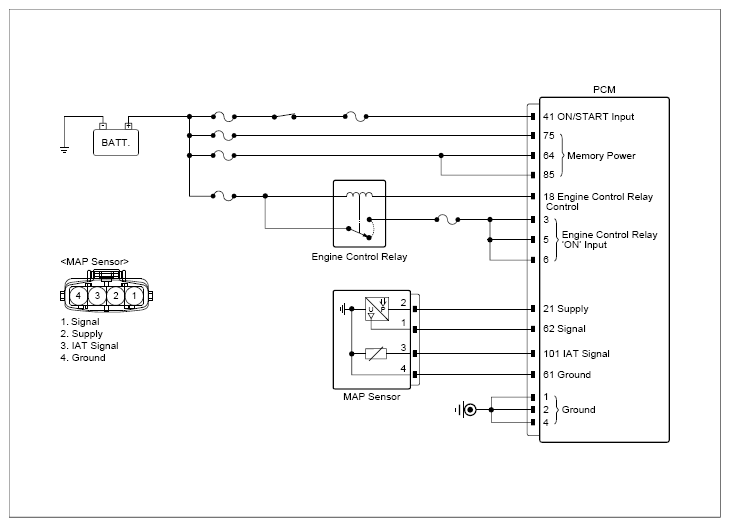

G13291330Courtesy of KIA MOTORS AMERICA, INC.

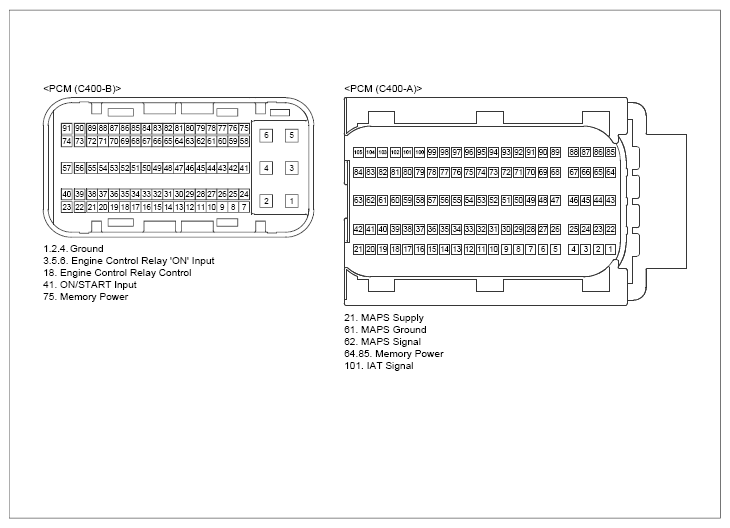

G13291331Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect MAPS connector.
  3. Ignition "ON".
 MAPS connector 3 (air temperature input) Chassis ground - Approx. 5V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 MAPS connector 4 (ground) Chassis ground - Approx. below 1Ω

Good

  1. Go to "Component Inspection " procedure.

No Good

  1. Repair or replace as necessary and then go to "Verification of Repair " procedure.
