Repair Procedures: Removal
- Disconnect the negative battery terminal.

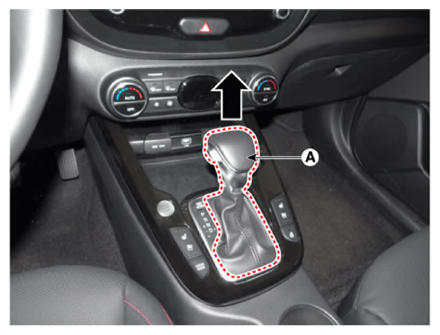

- Remove the knob (A) by pulling it in the direction of the arrow after separating the boots from the console upper cover.
 Courtesy of KIA MOTORS AMERICA, INC.
|

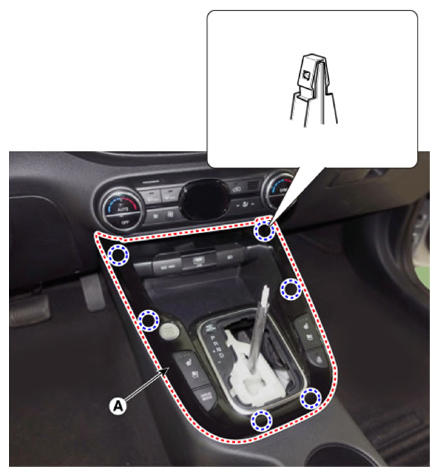

- Remove the console upper cover (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

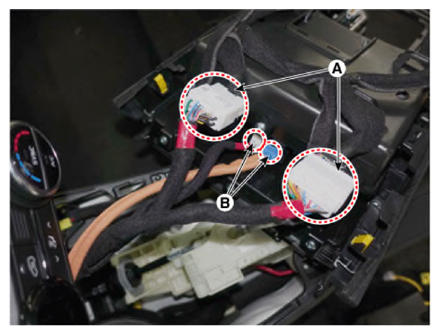

- Disconnect the extension connector (A) and multimedia jack connectors (B).
 Courtesy of KIA MOTORS AMERICA, INC.
|

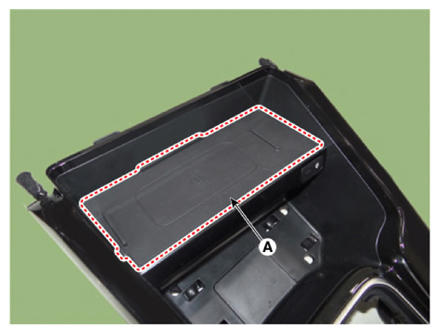

- Remove the wireless power charger pad (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

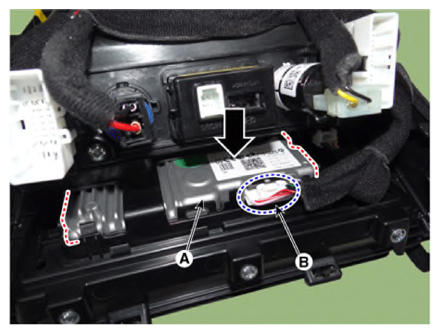

- Remove the wireless power charger (A) by pushing it in the direction arrow after disconnecting the connector (B).
 Courtesy of KIA MOTORS AMERICA, INC.
|
