Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 6

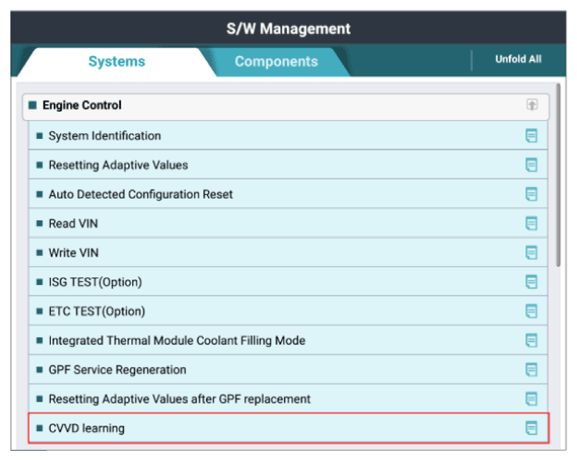

G13582588Courtesy of KIA MOTORS AMERICA, INC.

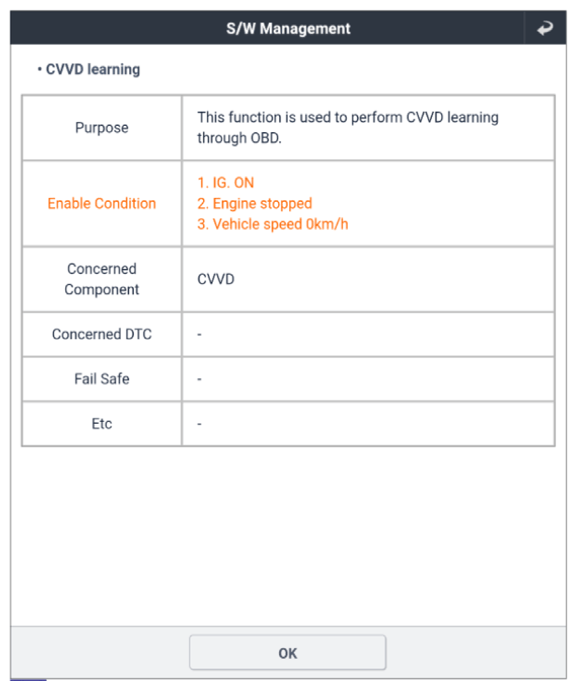

G13582589Courtesy of KIA MOTORS AMERICA, INC.

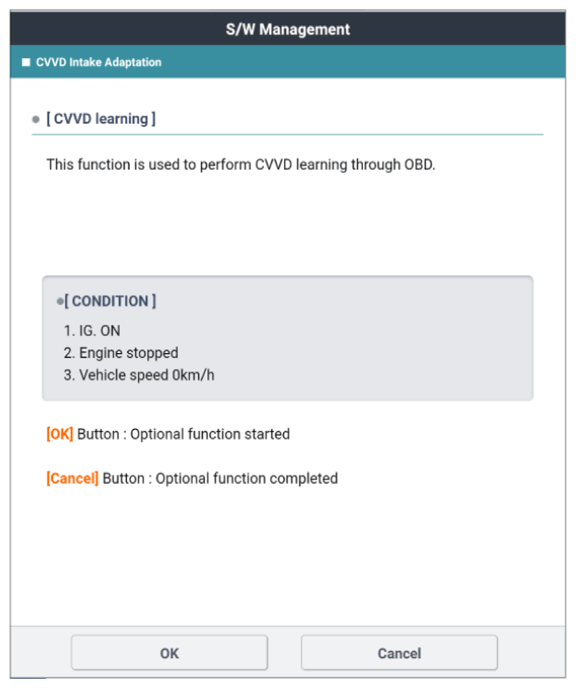

G13582590Courtesy of KIA MOTORS AMERICA, INC.

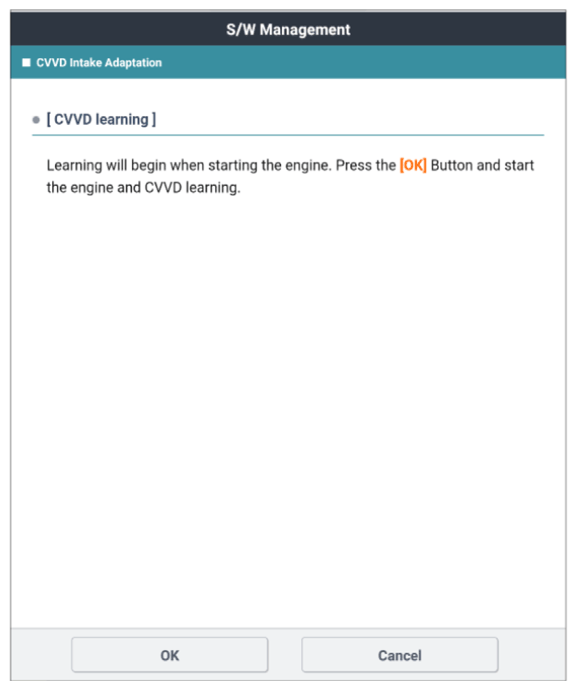

G13582591Courtesy of KIA MOTORS AMERICA, INC.
G13582592Courtesy of KIA MOTORS AMERICA, INC.
G13582593Courtesy of KIA MOTORS AMERICA, INC.
