Engine Control System Diagnosis (HEV) (11 Of 11)
>>
DTC U0110-00: Lost Communication With Drive Motor Control Module
>>
Component Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

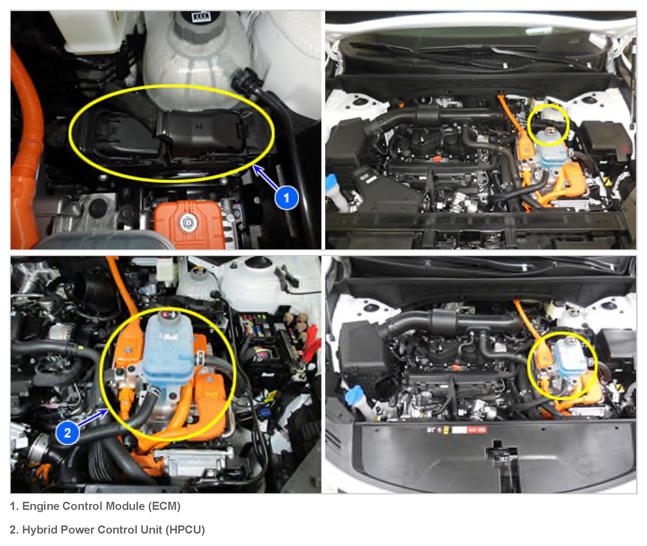

Component Location
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
HPCU: HCU + LDC + MCU + GCU + High voltage junction box
Courtesy of KIA MOTORS AMERICA, INC.
