Home >> Kia >> 2021 >> Seltos S Turbo >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.6L >> DCT Control Module (TCM) >> Components & Components Location >> Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Components & Components Location: Components

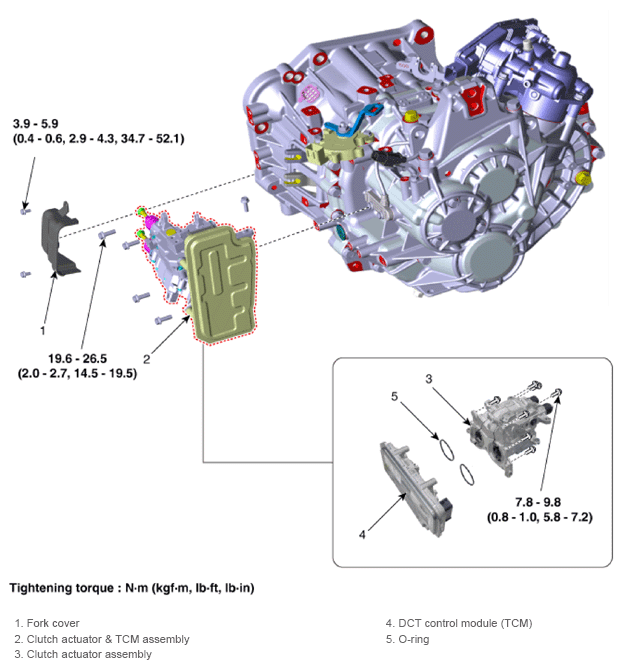

Fig 1: Dual Clutch Transmission Control Module Components Location With Torque Specification
G13480848Courtesy of KIA MOTORS AMERICA, INC.
