Repair Procedures: Removal

  1. Remove the Rear LH wheel.

    (Refer to Suspension System - "TIRES/WHEELS ")

  2. Remove the LH side rear wheel guard.

    (Refer to Body - "REAR WHEEL GUARD ")

  3. Open the fuel filler door.

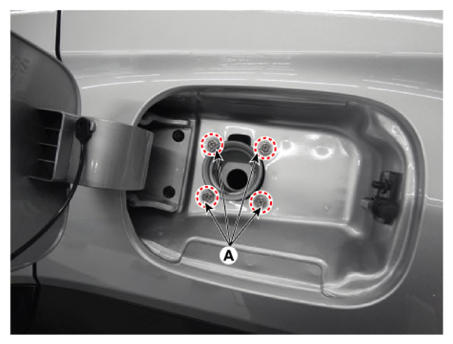

  4. Remove the fuel filler-neck assembly mounting bolts (A).
    G13483172Courtesy of KIA MOTORS AMERICA, INC.

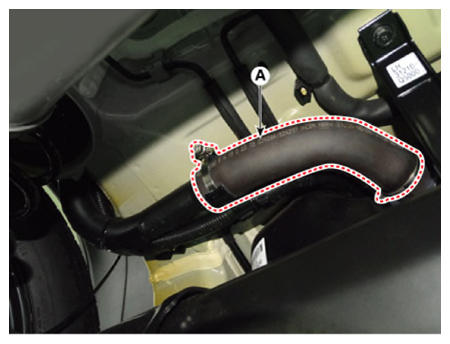

  5. Disconnect the fuel filler hose (A).
    G13483173Courtesy of KIA MOTORS AMERICA, INC.

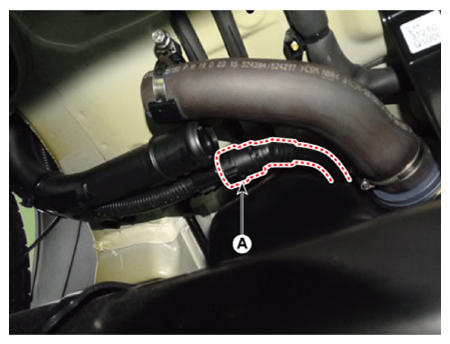

  6. Disconnect the ventilation hose (A).
    G13483174Courtesy of KIA MOTORS AMERICA, INC.

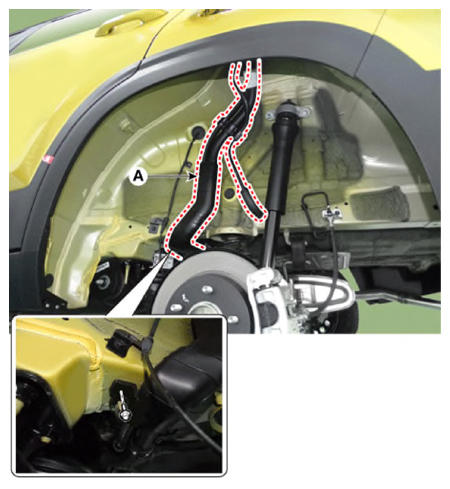

  7. Remove the fuel filler-neck assembly (A) after loosening the mounting bolt.

    Tightening torque  :

    9.0 - 10.0 N.m (0.91 - 1.0 kgf.m, 6.63 - 7.37 lb-ft)

    G13483175Courtesy of KIA MOTORS AMERICA, INC.
