Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 figures 1 to 5 below

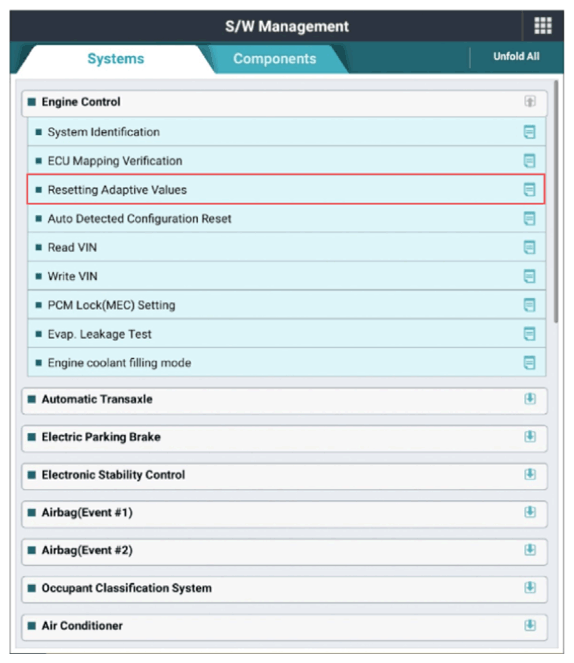

G13051024Courtesy of KIA MOTORS AMERICA, INC.

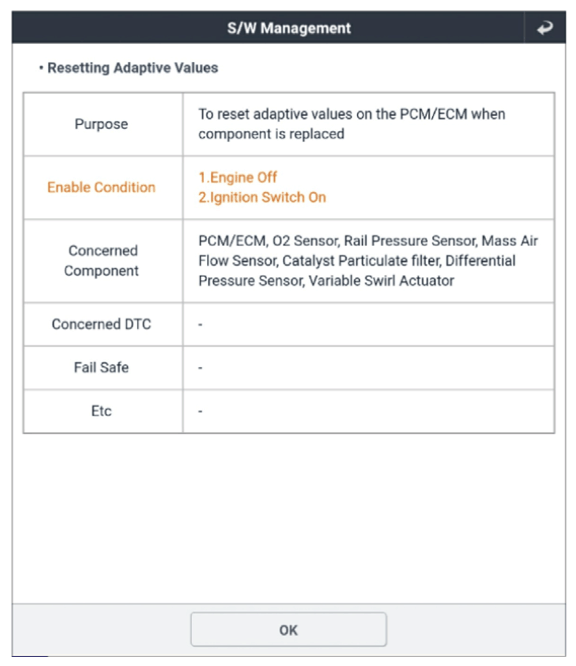

G13051025Courtesy of KIA MOTORS AMERICA, INC.

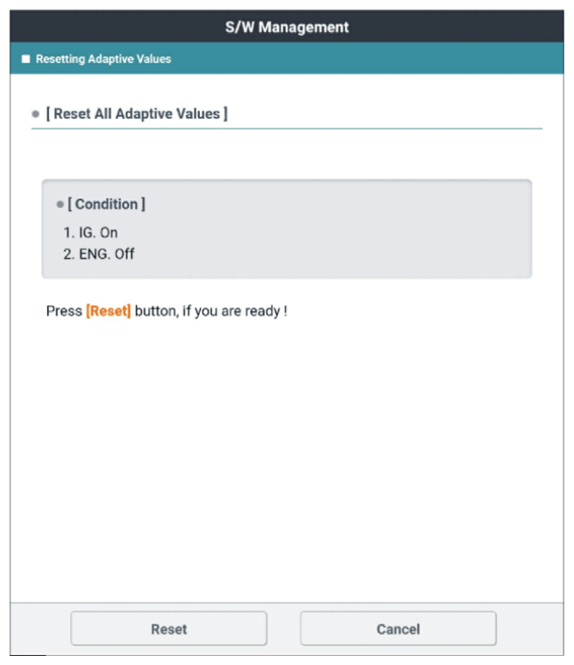

G13051026Courtesy of KIA MOTORS AMERICA, INC.

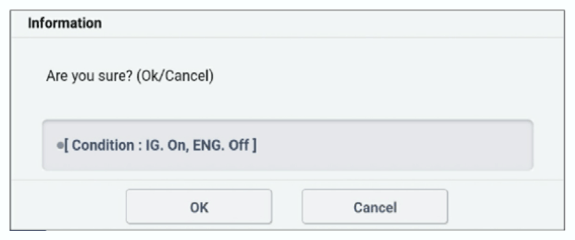

G13051027Courtesy of KIA MOTORS AMERICA, INC.

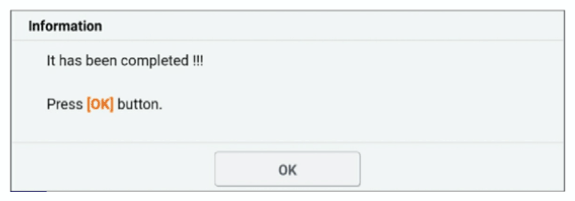

G13051028Courtesy of KIA MOTORS AMERICA, INC.
