Components & Components Location: Component

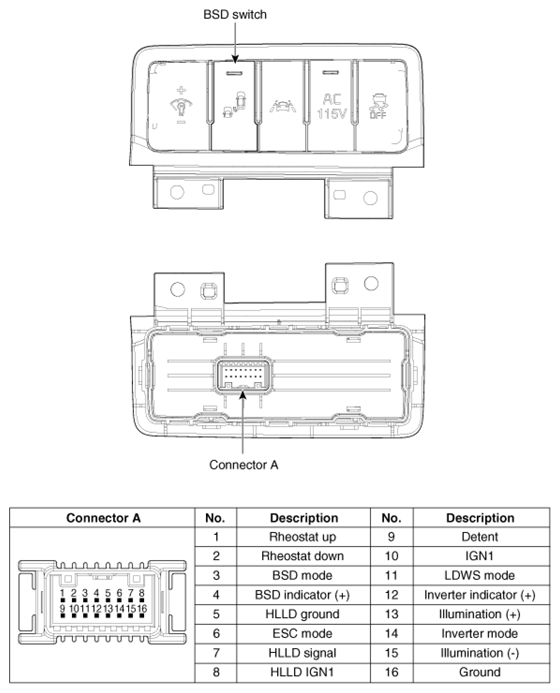

Fig 1: Blind Spot Detection Switch Connector End View And Terminal Description
G13046818Courtesy of KIA MOTORS AMERICA, INC.
