Repair Procedures: Disassembly

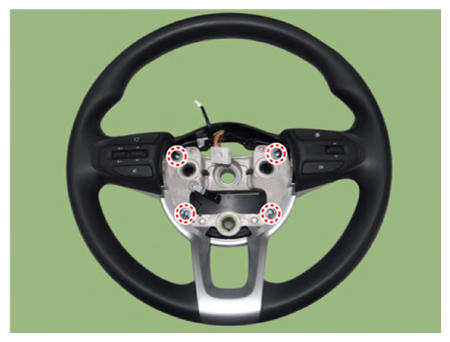

  1. Loosen the steering wheel screw.
    G13705243Courtesy of HYUNDAI MOTOR AMERICA

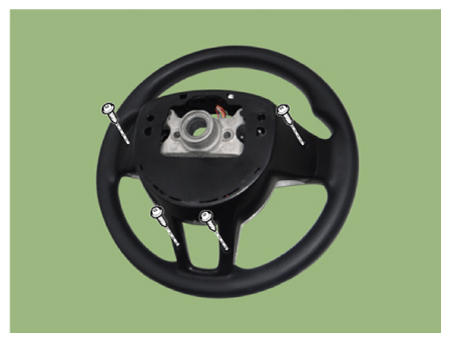

  2. Loosen the steering wheel lower cover screw.
    G13705244Courtesy of HYUNDAI MOTOR AMERICA

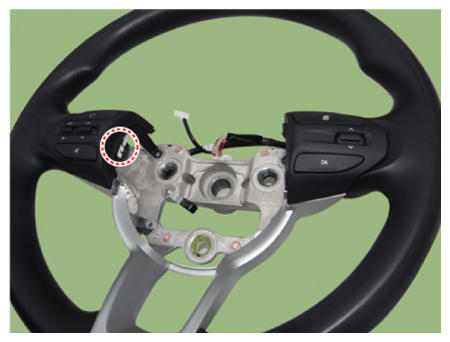

  3. Disconnect the switch connector.
    G13705245Courtesy of HYUNDAI MOTOR AMERICA

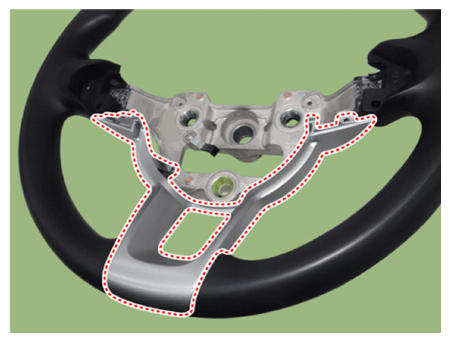

  4. Remove the bezel.
    G13705246Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
